XCMG / XGC55T
XCMG equipment / Product profile

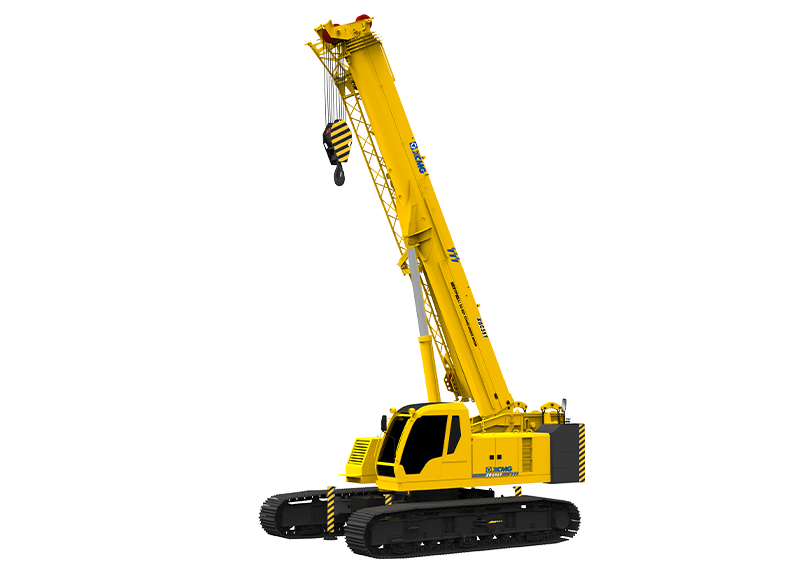

Telescopic Boom Crawler Crane
XGC55T
XCMG XGC55T — Telescopic Boom Crawler Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. rated lifting capacity55 t
Base boom length10.6 m
Max. length boom41 m
Max. length boom+Jib57 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XGC55T — Telescopic Boom Crawler Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. rated lifting capacity: 55 t · Base boom length: 10.6 m · Max. length boom: 41 m · Max. length boom+Jib: 57 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
Maximum rated lifting weight 55t41m main boom + 16m fixed jib, the widest operating range in the industryStrong performance, leading the industry's 60t-level product performanceCrawler beam + counterweight with self-disassembly technology, no need the auxiliary crane when disassemblyMainbody transport: weight <28.6t, width <3.0m, meet the requirmentof 1.2m pallet truck.The core accessories are imported and domestic first-line brands with high reliability.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. rated lifting capacity | 55 | t |
| Total mass in travel state | Not published | t |
| Max. travel speed with no load | Not published | t |
| Total mass in travel state | 62000 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Base boom length | 10.6 | m |
| Max. length boom | 41 | m |
| Max. length boom+Jib | 57 | m |
| Overall length | 12736 | mm |
| Overall width | 4800/3360 | extension/retraction |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
