XCMG / XGC55
XCMG equipment / Product profile

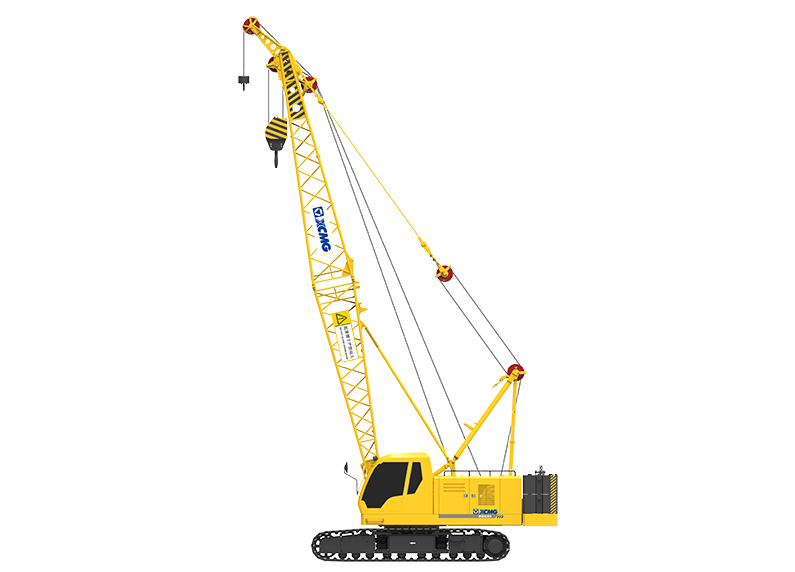

Lattice Boom Crawler Crane
XGC55
XCMG XGC55 — Lattice Boom Crawler Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Boom working condition max. rated lifting capacity55 t
Boom length13-52 m
Max. load moment203.5 t.m
Fixed jib length7-16 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XGC55 — Lattice Boom Crawler Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Boom working condition max. rated lifting capacity: 55 t · Boom length: 13-52 m · Max. load moment: 203.5 t.m · Fixed jib length: 7-16 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XGC55 crawler crane pays attention to the improvement of lifting performance, working efficiency, transport convenience and operation comfort. The system is mature and reliable with complete safety devices. Fitted with multiple advanced technologies, such as gantry self-pulling function, free fall function, main and auxiliary hook block one-key switch function, engine cold start device, winch monitoring system, hydraulic high pressure bypass filter system, electronic level gauge, lightning protection system, travel direction-change function, boom catwalk and etc, the crane’s performance is superior to that with other brands in various aspects.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Boom working condition max. rated lifting capacity | 55 | t |
| Max. load moment | 203.5 | t.m |
| Hoist winch max. single line speed | Not published | m/min |
| Total vehicle mass | 46.3 | Main hook block, 19m boom |
| Max. mass of single unit in transport state | 28.6 | t |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max.boom length | Not published | m |
| Boom length | 13-52 | m |
| Light boom length | Not published | — |
| Fixed jib length | 7-16 | m |
| Tower jib length | Not published | — |
| Max. dimension of single unit in transport state:L×W×H | 12.04×3.45×3.36 | m |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine model | Weichai WP7 | — |
| Rated power | 199 | kw |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
