E Series

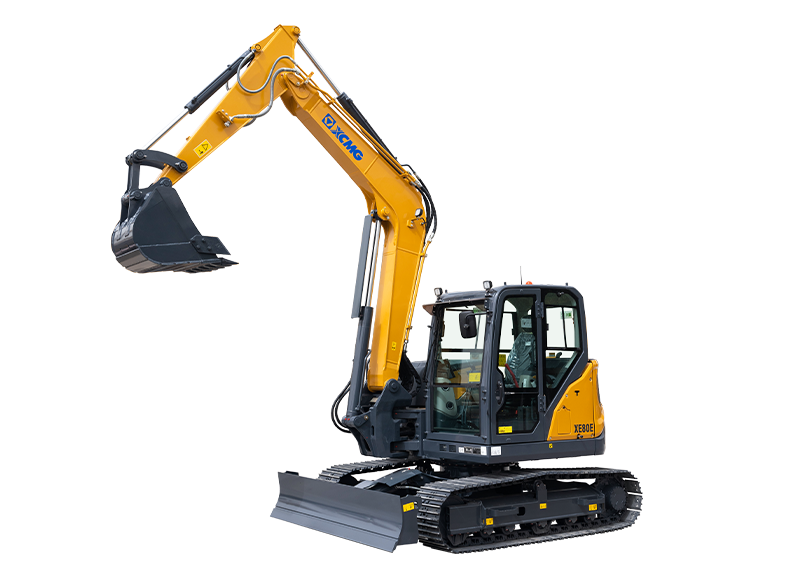

XE80E（Single boom）
XCMG XE80E（Single boom） — E Series. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE80E（Single boom） — E Series. Review published parameters and request the configuration for your destination market from XEMACH.
Bucket capacity: 0.35 m³ · Operating weight: 9250 Kg · Rated power: 54.6 kW/rpm · Engine model: Kubota V3307CRTE5
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
With an international famous brand - Kubota engine, XE80E has low noise, small vibration, good fuel economy, strong power, and sufficient low-speed torque reserves. The large-displacement electronic control pump is configured to realize low fuel consumption. The strengthened working device can easily complete heavy-load digging, crushing, and other operations under tough working conditions. The axle sleeve strength is improved, so the overall durability can be improved by about 40%. The standard air filter with the double filtration function can help the filter fineness reach 99% in an operating environment with heavy dust.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 9250 | Kg |
| Bucket capacity | 0.35 | m³ |
| Travel speed | 4.9/2.7 | km/h |
| Swing speed | 12 | r/min |
| Bucket digging force | 64 | kN |
| Arm digging force | 41 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 54.6 | kW/rpm |
| Engine model | Kubota V3307CRTE5 | — |
| Emission standard | Euro V | — |
| Maximum torque/speed | 265/1500 | N.m |
| Displacement | 3.3 | L |
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
