Operating weight
XE80 / XCMG
XCMG / GLOBAL EXPORTXE80
XCMG equipment / Product profile
Available on request
XCMG / Wheeled Excavator
XE80

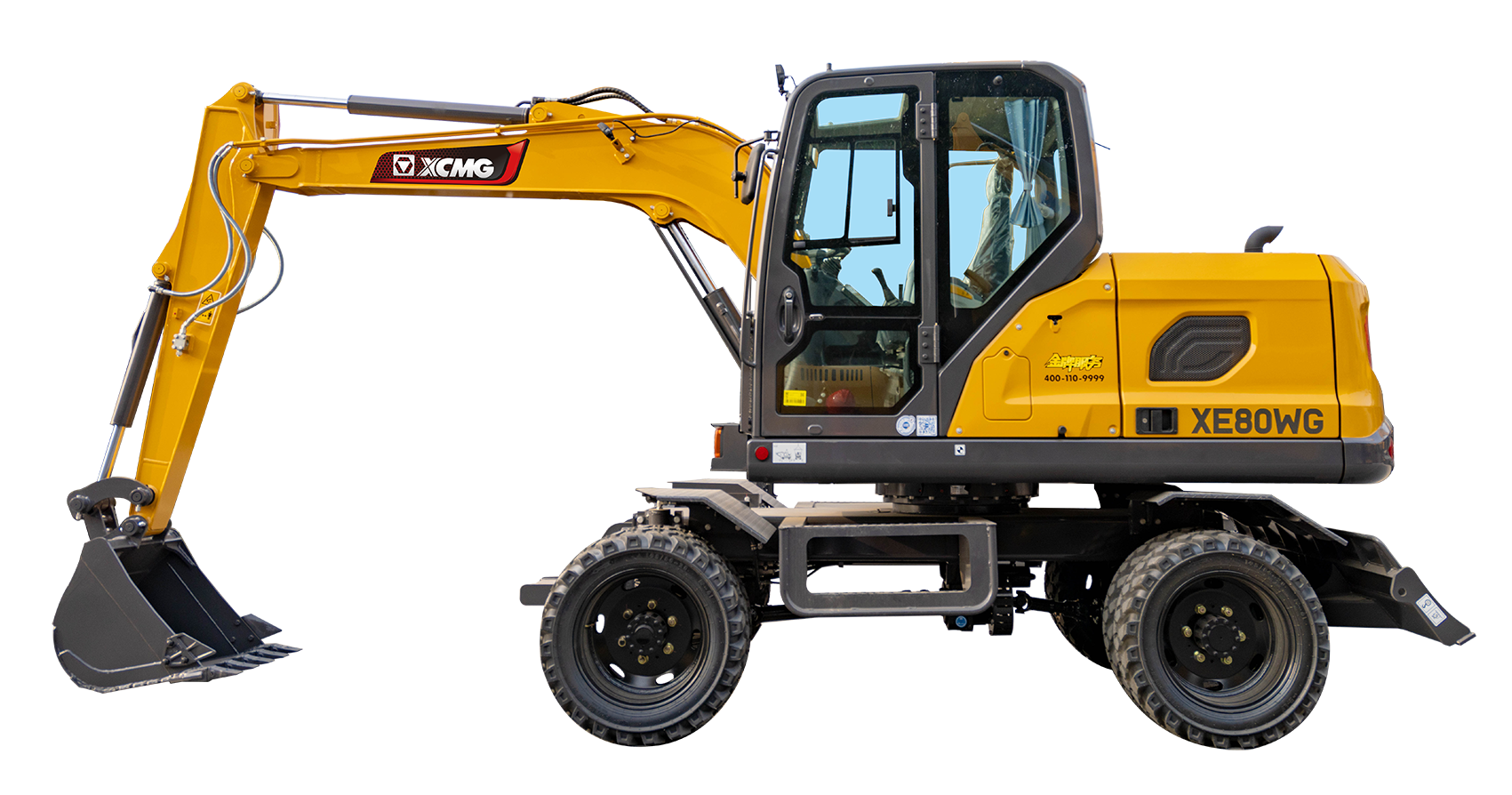

The XCMG XE80 is a wheeled excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Wheeled ExcavatorKey specifications
Rated power/speed
Bucket capacity
A Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight7100kg
02Engine+
ItemValueUnit
ModelYCF3075-T302—
Direct injection√—
Four strokes√—
Water cooled√—
Turbocharged√—
Air to air intercooler√—
Number of cylinders4—
Rated power/speed55.8 / 2200kW/rpm
Maximum torque/speed4N·m
Piston displacement2.982L
03Main Performance+
ItemValueUnit
Travel speed (H/L)46111km/h
Swing speed10r/min
Gradeability35° (70%)—
Bucket digging force36kN
Arm digging force24kN
Maximum tractive force42kN
04Hydraulic System+
ItemValueUnit
Main pump1 × Variable pump—
Travel system pressure230bar
Swing system pressure230bar
Pilot system pressure3.2bar
05Oil Capacity+
ItemValueUnit
Fuel tank capacity125L
Hydraulic tank capacity90L
06Dimensions+
ItemValueUnit
A Overall length6365mm
B Overall width2130mm
C Overall height3060mm
D Counterweight clearance1048mm
E Minimum ground clearance290mm
F Minimum tail swing radius1970mm
G Wheel base2400mm
H Tread width1608mm
I Width of platform2070mm
J The distance from front axle to the rotary center1400mm
K Engine hood height2028mm
07Working Range+
ItemValueUnit
L1 Maximum digging reach6550mm
L3 Maximum digging height6950mm
L4 Maximum dumping height5090mm
L5 Maximum digging depth3630mm
L6 Maximum depth cut for 8 ft level bottom3325mm
L7 Maximum vertical wall digging depth3155mm
L9 Maximum dozer lifting height470mm
L10 Maximum dozer cutting depth120mm
08Standard+
ItemValueUnit
Length of boom3400mm
Length of arm1900mm
Bucket capacity0.24(general duty)m³
