Operating weight
XE75G / XCMG
XCMG / GLOBAL EXPORTXE75G
XCMG equipment / Product profile
Available on request
XCMG / Crawler Excavator
XE75G

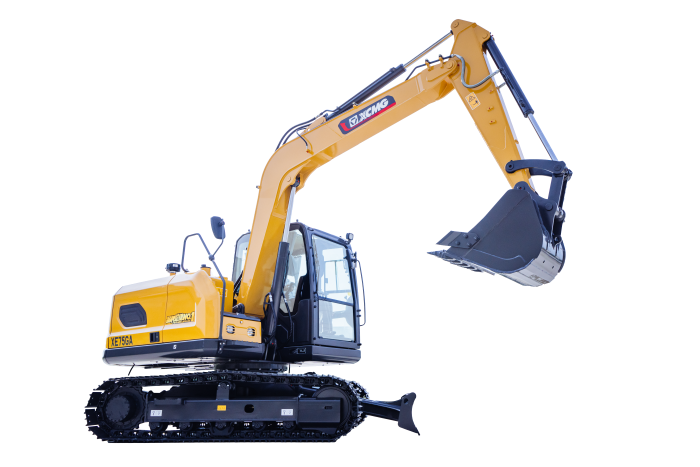

The XCMG XE75G is a crawler excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Crawler ExcavatorKey specifications
Rated power/rpm
Bucket capacity
B Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight7,700kg
02Dimensions+
ItemValueUnit
A Overall height2,780mm
B Overall length6,185mm
C Overall width2,265mm
D Upper structure width2,260mm
E Chassis width2,250mm
F Track length2,825mm
G Track height696mm
H Standard track shoe width450mm
I Track wheelbase2,195mm
J Track gauge1,800mm
K Counterweight ground clearance813mm
L Minimum ground clearance385mm
M Tail Swing Radius1,840mm
N Dozer blade height385mm
O Dozer blade width2,250mm
P Hood height1,800mm
03Working range+
ItemValueUnit
L1 Maximum digging reach6,260mm
L2 Maximum digging reach at GRP6,070mm
L3 Maximum digging height7,085mm
L4 Maximum unloading height5,160mm
L5 Minimum unloading height2,476mm
L6 8 ft. level floor digging depth3,628mm
L7 Maximum vertical digging depth2,960mm
L8 Maximum digging depth4,020mm
L9 Minimum swing radius1,818mm
L10 Maximum lifting height of dozer blade440mm
L11 Maximum cutting depth of dozer blade445mm
04Track+
ItemValueUnit
Standard track shoe width450mm
Number of track shoes (per side)39—
Number of track roller (per side)5—
Number of track carrier roller (per side)1—
05Standard+
ItemValueUnit
Length of boom3,720mm
Length of arm1,622mm
Bucket capacity0.33m³
06Engine+
ItemValueUnit
Engine brand/modelV2607—
Rated power/rpm42.4/2000kW/rpm
Direct injection√—
4-stroke√ (Indicated)—
Water-cooled√ (Indicated)—
Stroke110mm
Cylinder bore87mm
Number of cylinders4—
Maximum torque/rpm222.5/1400-1800N-m/rpm
Displacement2.62L
07Main performance+
ItemValueUnit
Travel speed (high/low)4.3/2.5km/h
Swing speed11r/min
Maximum swing torque23.00kN-m
Gradeability35° (70%)—
Ground specific pressure33.50kPa
Bucket digging force (SAE)54.00kN
Bucket digging force (ISO)57.00kN
Arm digging force (SAE)35.00kN
Arm digging force (ISO)38.00kN
Maximum traction force68kN
08Hydraulic system+
ItemValueUnit
Main pump1 x piston pump—
Maximum flow rate of main system164L/min
Main system pressure28MPa
Pilot system pressure3.7±0.2MPa
Travel system pressure28MPa
Swing system pressure24MPa
09Cab standard+
ItemValueUnit
ISO 10262: 1998 (OPG)√—
ISO 12117-2:2008 (ROPS)√—
10Oil capacity+
ItemValueUnit
Fuel tank capacity170L
Hydraulic oil tank capacity76L
A Overall height2,780mm
B Overall length6,185mm
C Overall width2,265mm
D Upper structure width2,260mm
E Chassis width2,250mm
F Track length2,825mm
G Track height696mm
H Standard track shoe width450mm
I Track wheelbase2,195mm
J Track gauge1,800mm
K Counterweight ground clearance813mm
L Minimum ground clearance385mm
M Tail swing radius1,840mm
N Hood height1,800mm
L1 Maximum reach6,260mm
L2 Maximum reach at GRP6,070mm
L3 Maximum digging height7,085mm
L4 Maximum unloading height5,160mm
L5 8 ft. level floor digging depth3,628mm
L6 Maximum vertical digging depth4,020mm
L7 Maximum digging depth2,960mm
L8 Minimum swing radius1,818mm
Standard track shoes width450mm
Number of track shoes (per side)39—
Number of track roller (per side)5—
Number of track carrier roller (per side)1—
Length of boom3,720mm
Length of arm1,622mm
11Bucket+
ItemValueUnit
Bucket capacity0.33 (earthmoving)m³
