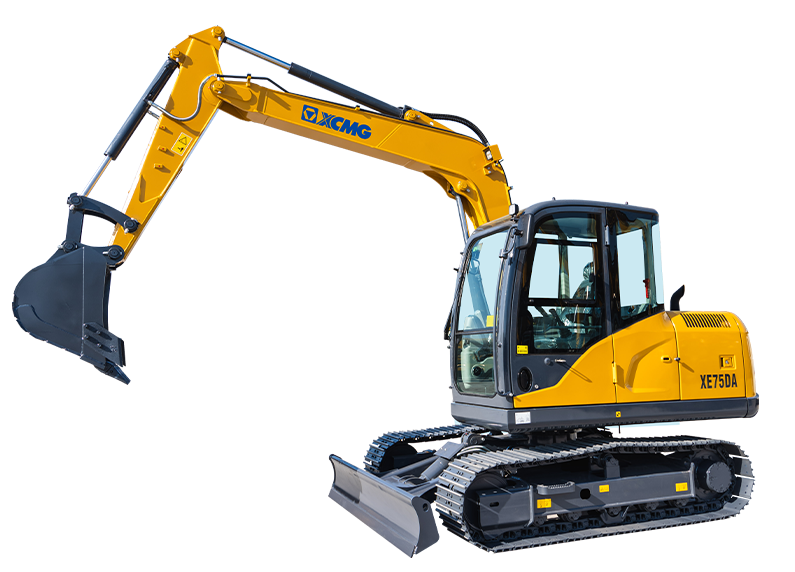

D Series
XE75DA
XCMG XE75DA — D Series. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE75DA — D Series. Review published parameters and request the configuration for your destination market from XEMACH.
Bucket capacity: 0.33 m³ · Operating weight: 7680 Kg · Rated power: 42.4 kW/rpm · Engine model: Kubota V2607
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
With Kubota turbocharged engine, XE75DA has sufficient low-speed torque reserve, strong power, good fuel economy, low noise and vibration. Newly optimised second-generation main valve further optimises the handling performance, with good handling of compound action, fast response speed, more precise control and more energy-saving system. Reinforced working device is easily capable of heavy-duty excavation, crushing and other harsh working conditions, and the working life is increased by more than 15%. Standard 0.33m³ bucket capacity, high digging operation efficiency, increase the material used for wear-resistant plate, bucket practical life enhancement of more than 10%. Additionally, it has comfortable operation cab and simple maintenance.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 7680 | Kg |
| Bucket capacity | 0.33 | m³ |
| Travel speed | 5.4/3.1 | km/h |
| Swing speed | 10 | r/min |
| Bucket digging force | 57 | kN |
| Arm digging force | 38 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 42.4 | kW/rpm |
| Engine model | Kubota V2607 | — |
| Emission standard | National Stage Ⅲ | — |
| Maximum torque/speed | 225.8/1400-1800 | N.m |
| Displacement | 2.615 | L |
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
