Operating weight
XE60G / XCMG
XCMG / GLOBAL EXPORTXE60G
XCMG equipment / Product profile
Available on request

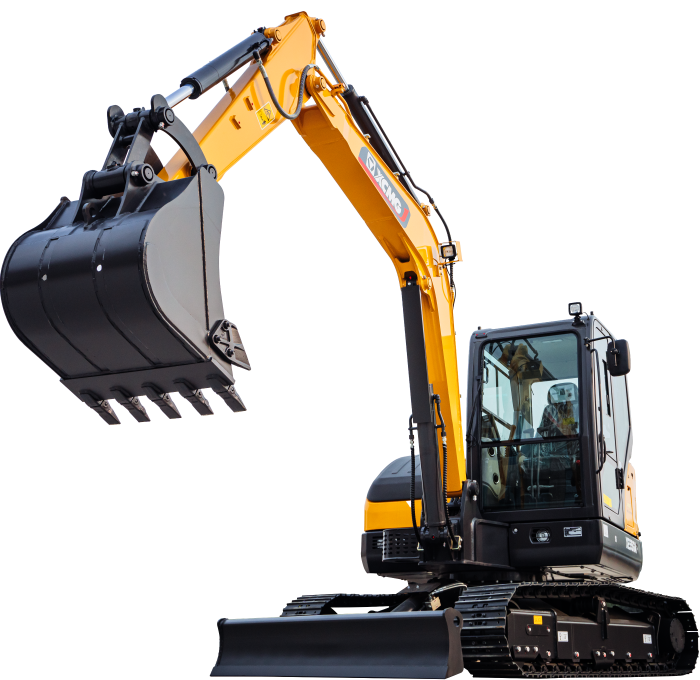

XCMG / Crawler Excavator
XE60G
The XCMG XE60G is a crawler excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Crawler ExcavatorKey specifications
Rated power/rpm
Bucket capacity
B Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight6,000kg
02Dimensions+
ItemValueUnit
A Overall height2,780mm
B Overall length6,010mm
C Overall width2,000mm
D Upper structure width1,880mm
E Chassis width2,000mm
F Track length2,535mm
G Track height606mm
H Standard track shoe width400mm
I Track wheelbase1,990mm
J Track gauge1,600mm
K Counterweight ground clearance700mm
L Minimum ground clearance380mm
M Tail Swing Radius1,700mm
N Dozer blade height370mm
O Dozer blade width2,000mm
P Hood height1,720mm
03Working range+
ItemValueUnit
L1 Maximum digging reach6,130mm
L2 Maximum digging reach at GRP5,990mm
L3 Maximum digging height5,600mm
L4 Maximum unloading height3,885mm
L5 Minimum unloading height1,400mm
L6 8 ft. level floor digging depth3,430mm
L7 Maximum vertical digging depth2,680mm
L8 Maximum digging depth3,830mm
L9 Minimum swing radius2,520mm
L10 Maximum lifting height of dozer blade390mm
L11 Maximum cutting depth of dozer blade560mm
04Track+
ItemValueUnit
Standard track shoe width400mm
Number of track shoes (per side)40—
Number of track roller (per side)5—
Number of track carrier roller (per side)1—
05Standard+
ItemValueUnit
Length of boom3,000mm
Length of arm1,600mm
Bucket capacity0.24m³
06Engine+
ItemValueUnit
Engine brand/modelV2607—
Rated power/rpm35.0/2200kW/rpm
Direct injection√—
4-stroke√—
Water-cooled√—
Stroke110mm
Cylinder bore87mm
Number of cylinders4—
Maximum torque/rpm171.5/1100-1500N-m/rpm
Displacement2.62L
07Main performance+
ItemValueUnit
Travel speed (high/low)3.9/2.4km/h
Swing speed11r/min
Maximum swing torque12.20kN-m
Gradeability35° (70%)—
Ground specific pressure33.40kPa
Bucket digging force (SAE)43.20kN
Bucket digging force (ISO)48.30kN
Arm digging force (SAE)31.20kN
Arm digging force (ISO)32.50kN
Maximum traction force70kN
08Hydraulic system+
ItemValueUnit
Main pump1 x piston pump—
Maximum flow rate of main system144L/min
Main system pressure26MPa
Pilot system pressure3.50MPa
Travel system pressure26MPa
Swing system pressure23MPa
09Cab standard+
ItemValueUnit
ISO 10262: 1998 (OPG)√—
ISO 12117-2:2008 (ROPS)√—
ISO 12117: 1997 (TOPS)√—
10Oil capacity+
ItemValueUnit
Fuel tank capacity130L
Hydraulic oil tank capacity65L
A Overall height2,780mm
B Overall length6,010mm
C Overall width2,000mm
D Upper structure width1,880mm
E Chassis width2,000mm
F Track length2,535mm
G Track height606mm
H Standard track shoe width400mm
I Track wheelbase1,990mm
J Track gauge1,600mm
K Counterweight ground clearance700mm
L Minimum ground clearance380mm
M Tail swing radius1,700mm
N Hood height1,720mm
L1 Maximum reach6,130mm
L2 Maximum reach at GRP5,990mm
L3 Maximum digging height5,600mm
L4 Maximum unloading height3,885mm
L5 8 ft. level floor digging depth3,430mm
L6 Maximum vertical digging depth2,680mm
L7 Maximum digging depth3,830mm
L8 Minimum swing radius2,520mm
Standard track shoes width400mm
Number of track shoes (per side)40—
Number of track roller (per side)5—
Number of track carrier roller (per side)1—
Length of boom3,000mm
Length of arm1,600mm
11Bucket+
ItemValueUnit
Bucket capacity0.24 (earthmoving)m³
