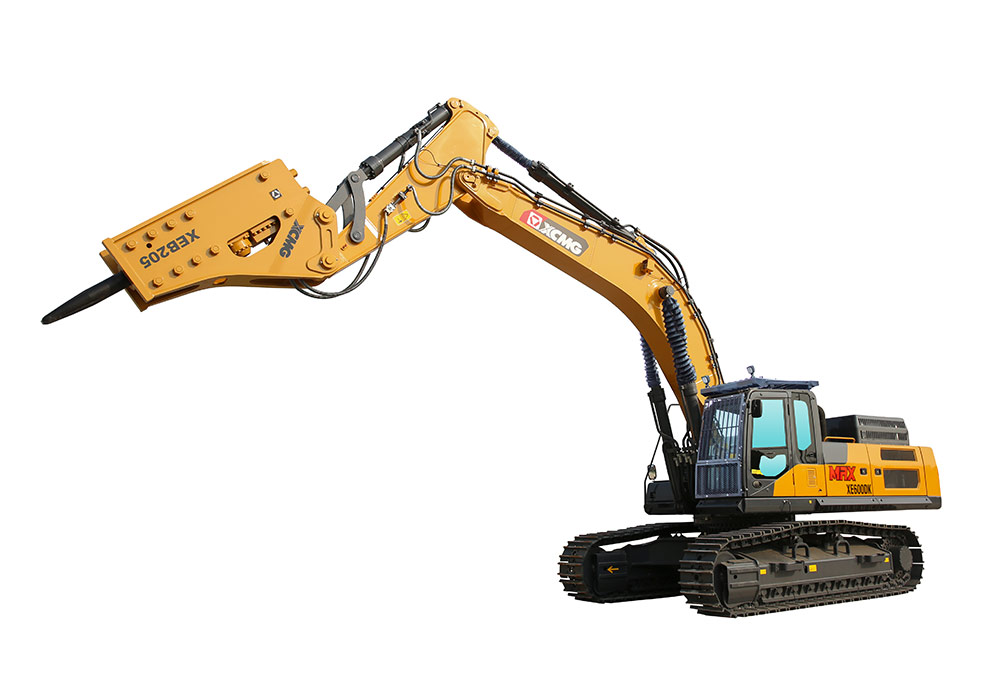

XCMG XE600DK — D Series. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE600DK — D Series. Review published parameters and request the configuration for your destination market from XEMACH.
Bucket capacity: 3.6 m³ · Operating weight: 64500 Kg · Rated power: 277 kW/rpm · Engine model: Cummins QSX12
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCMG-customized Commins engine, with the largest power in the industry, XE600DK is characterized by low-speed and high-torque, good starting performance, excellent load-bearing performance, and high reliability. 240 cc large-displacement main pump, with the largest displacement of the same tonnage machine, provides larger flow output, higher speed, and higher breaking operation efficiency. A large radiator with high temperature resistance helps improve the heat-sinking capability by 16%. The reinforced design is used for the working device, so the service life becomes longer. Additionally, standard configurations of the one-click starting switch and 8-inch touch screen make the operator comfort to be better.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 64500 | Kg |
| Bucket capacity | 3.6 | m³ |
| Travel speed | 5.4/3.2 | km/h |
| Swing speed | 7.9 | r/min |
| Bucket digging force | 330 | kN |
| Arm digging force | 276 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 277 | kW/rpm |
| Engine model | Cummins QSX12 | — |
| Emission standard | National Stage Ⅲ | — |
| Maximum torque/speed | 1898/(1200-1600) | N.m |
| Displacement | 11.8 | L |
