Operating weight
XE60 / XCMG
XCMG / GLOBAL EXPORTXE60
XCMG equipment / Product profile
Available on request
XCMG / Wheeled Excavator
XE60

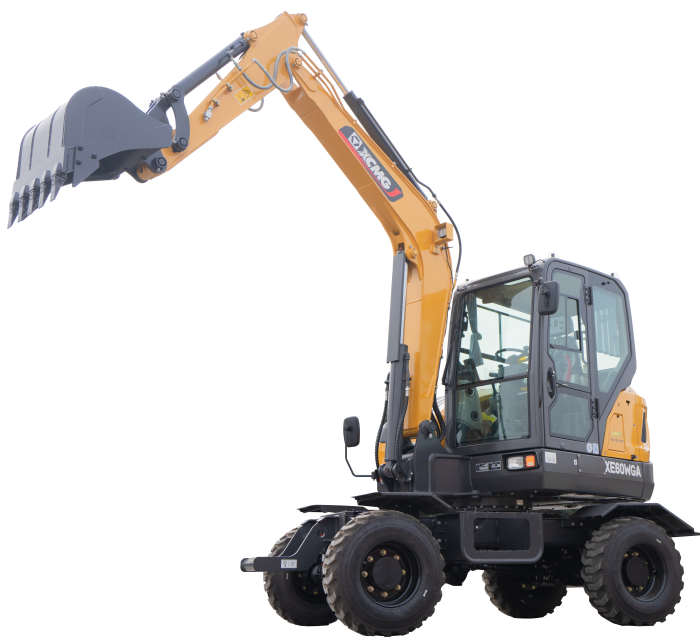

The XCMG XE60 is a wheeled excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Wheeled ExcavatorKey specifications
Rated power/speed
Bucket capacity
A Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight5900kg
02Engine+
ItemValueUnit
ModelYCF3050-T450—
Direct injection√—
Four strokes√—
Water cooled√—
Turbocharged√—
Air to air intercooler√—
Number of cylinders4—
Rated power/speed36.8 / 2200kW/rpm
Maximum torque/speed240 / 1200-1400N·m
Piston displacement2.982L
03Main Performance+
ItemValueUnit
Travel speed (H/L)23/10km/h
Swing speed10r/min
Gradeability30° (58%)—
Bucket digging force45kN
Arm digging force30kN
Maximum tractive force32kN
04Hydraulic System+
ItemValueUnit
Main pump1 × plunger pump—
Travel system pressure230bar
Swing system pressure230bar
Pilot system pressure32bar
05Oil Capacity+
ItemValueUnit
Fuel tank capacity115L
Hydraulic tank capacity95L
06Dimensions+
ItemValueUnit
A Overall length6185mm
B Overall width1949mm
C Overall height2910mm
D Counterweight clearance970mm
E Minimum ground clearance290mm
F Minimum tail swing radius1690mm
G Wheel base2100mm
H Tread width1600mm
I Width of platform1880mm
J The distance from front axle to the rotary center1230mm
K Engine hood height1970mm
07Working Range+
ItemValueUnit
L1 Maximum digging reach6145mm
L2 Maximum ground digging radius5940mm
L3 Maximum digging height5750mm
L4 Maximum dumping height4210mm
L5 Maximum digging depth3550mm
L6 Maximum depth cut for 8 ft level bottom3150mm
L7 Maximum vertical wall digging depth2520mm
L9 Maximum dozer lifting height435mm
L10 Maximum dozer cutting depth155mm
08Standard+
ItemValueUnit
Length of boom3000mm
Length of arm1600mm
Bucket capacity0.21m³
