E Series
XE45E

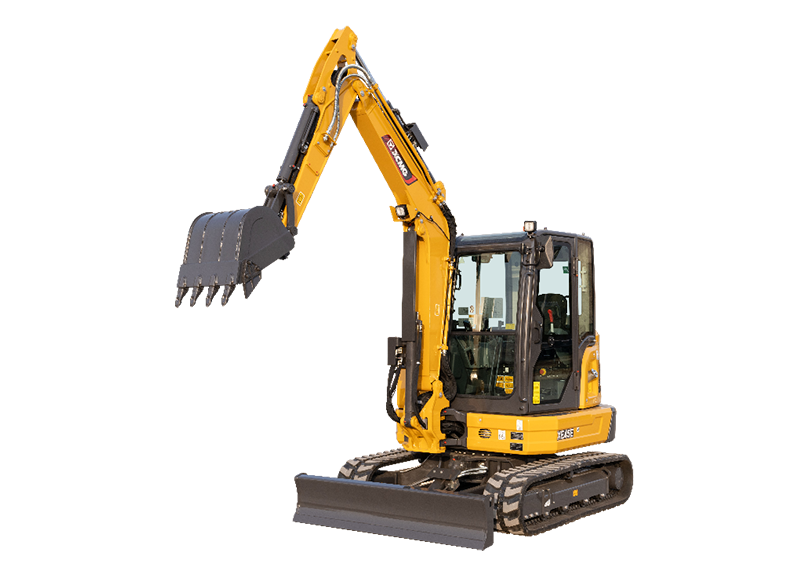

XCMG XE45E — E Series. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE45E — E Series. Review published parameters and request the configuration for your destination market from XEMACH.
Bucket capacity: 0.12 m³ · Operating weight: 4800 Kg · Rated power: 30.1/2,200 kW/rpm · Engine model: Kubota/D1803
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

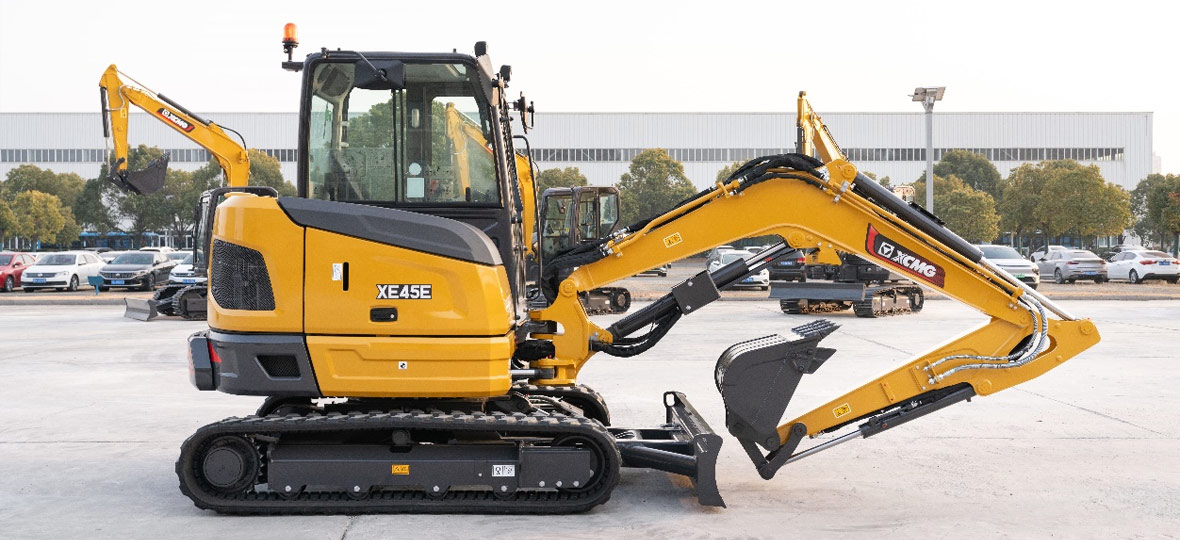

XE45E normal tail crawler hydraulic excavator has the characteristics of excellent human-machine interaction, reliable safety, and good maneuverability. XE45E crawler hydraulic excavator is equipped with rubber crawler, two multi-functional auxiliary hydraulic systems and auxiliary counterweight, which can meet the requirements of various working conditions such as municipal and garden. Sunshade, high-definition touch display, rear camera configuration, excellent safety and human-machine interaction, and auxiliary hydraulic system, which can match hydraulic quick change, thumb clamp, tilt bucket and other machines, one-key cruise operation of crushing function, high work efficiency.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 4800 | Kg |
| Bucket capacity | 0.12 | m³ |
| Travel speed | 5.0/2.6 | km/h |
| Swing speed | 9 | r/min |
| Bucket digging force | 37 | kN |
| Arm digging force | 22 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 30.1/2,200 | kW/rpm |
| Engine model | Kubota/D1803 | — |
| Emission standard | EU stage V | — |
| Maximum torque/speed | 150.5/1,500 | N.m |
| Displacement | 1.826 | L |
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
Request technical documents ↗Related models
XE45E
Tell us the destination, application and preferred configuration. Our machinery team will confirm availability and export details.
