XCMG / Crawler Excavator
XE370G

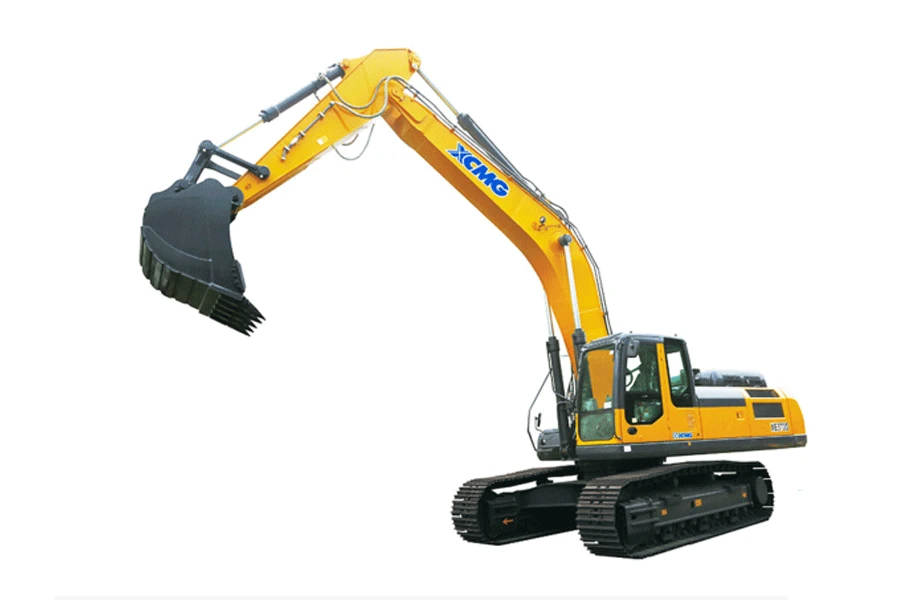

The XCMG XE370G is a crawler excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Crawler ExcavatorKey specifications
Rated power/rpm
Bucket capacity
B Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight36860kg
02Engine+
ItemValueUnit
Engine brand/modelIsuzu / AE-6HK1XWSC-S—
Rated power/rpm212 / 2000kW/rpm
Direct injection√—
4-stroke√—
Water-cooled√—
Turbocharged√—
Stroke4mm
Cylinder bore115mm
Number of cylinders6—
Maximum torque/rpm1080 / 1500N·m/rpm
Displacement7.79L
03Performance+
ItemValueUnit
Travel speed (high/low)5.0 / 2.9km/h
Swing speed9.9r/min
Maximum swing torque110kN·m
Gradeability35° (70%)—
Ground specific pressure67kPa
Bucket digging force (SAE)239kN
Bucket digging force (ISO)263kN
Arm digging force (SAE)205kN
Arm digging force (ISO)225kN
Maximum traction force305kN
04Hydraulic system+
ItemValueUnit
Main pump2 × variable pumps—
Pilot pump1 × Gear pump—
Maximum flow rate of main system2 × 320L/min
Main system pressure34.3MPa
Main system pressure (power-max pressure)37MPa
Pilot system pressure3.9MPa
Travel system pressure34.3MPa
Swing system pressure26.5MPa
05Cab standard+
ItemValueUnit
Cab standardISO 10262:1998 (OPG) ISO 12117-2:2008 (ROPS)—
06Oil capacity+
ItemValueUnit
Fuel tank capacity546L
Hydraulic oil tank capacity245L
07Dimensions+
ItemValueUnit
A Overall height3785mm
B Overall length11400mm
C Overall width3190mm
D Upper structure width2970mm
E Chassis width3190mm
F Track length5090mm
G Track height1100mm
H Standard track shoe width600mm
I Track wheelbase4140mm
J Track gauge2590mm
K Counterweight ground clearance1260mm
L Minimum ground clearance540mm
M Tail swing radius3670mm
N Hood height2810mm
08Working range+
ItemValueUnit
L1 Maximum reach10600mm
L2 Maximum reach at GRP10390mm
L3 Maximum digging height10060mm
L4 Maximum unloading height6960mm
L5 8 ft. level floor digging depth6640mm
L6 Maximum vertical digging depth4555mm
L7 Maximum digging depth6850mm
L8 Minimum swing radius4425mm
09Track+
ItemValueUnit
Standard track shoes width600mm
Number of track shoes (per side)49—
Number of track roller (per side)9—
Number of track carrier roller (per side)2—
10Standard+
ItemValueUnit
Length of boom6400mm
Length of arm2670mm
Bucket capacity1.8(reinforced)m³
Bucket capacity2.3(earthmoving)/1.8(rock)m³
