U Series
XE35U(Cab)

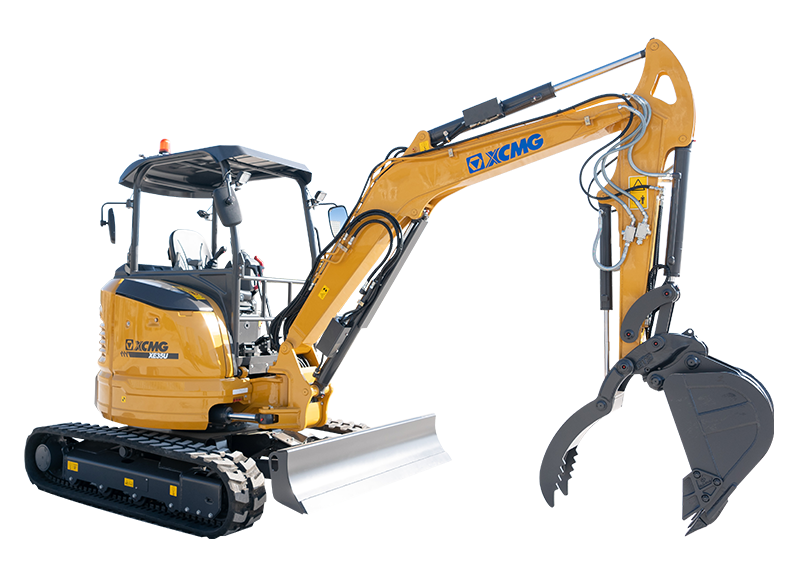

XCMG XE35U(Cab) — U Series. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE35U(Cab) — U Series. Review published parameters and request the configuration for your destination market from XEMACH.
Bucket capacity: 0.12 m³ · Operating weight: 4200 Kg · Rated power: 18.2 kW/rpm · Engine model: Yanmr 3TNV88F
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

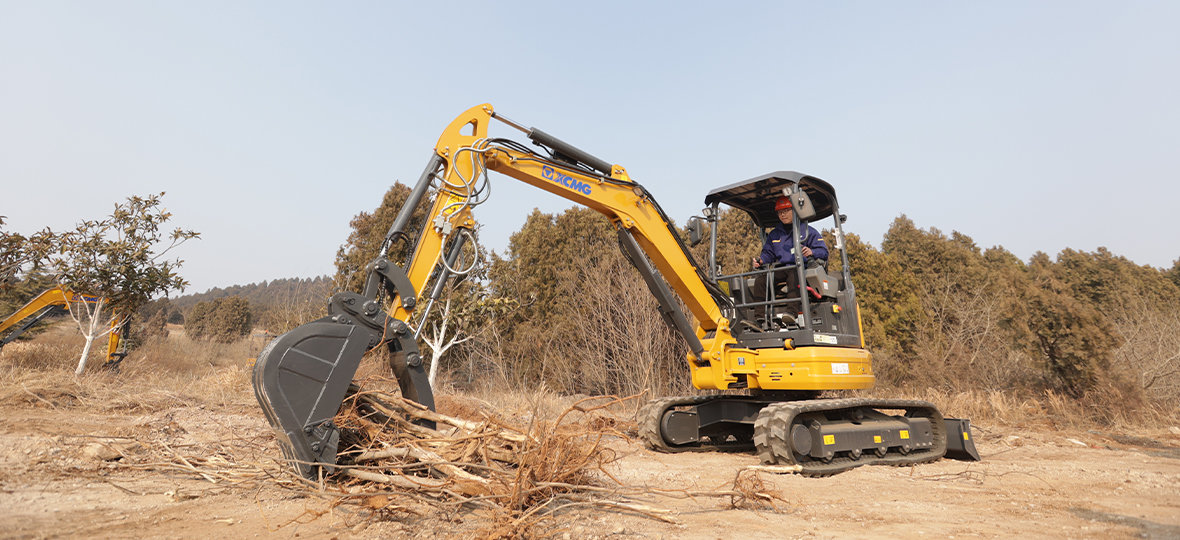

The XE35U comes with every feature you expect from a mini excavator in its tonnage.Variable angle boom, 75° to the left and 50° to the right, and zero swing tail give you an edge when undertaking operations wherever space is confined.Powered by a reliable 24.4 hp YANMAR engine, you can count on it to finish tough jobs in various operating conditions. When it comes to efficiency, versatility is a critical factor. That's why the machine is compatible to multiple attachments that can be installed within a short period of time with its hydraulic quick coupler. You will make full use of every second in the jobsite.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 4200 | Kg |
| Bucket capacity | 0.12 | m³ |
| Travel speed | 3.6/2.2 | km/h |
| Swing speed | 9 | r/min |
| Bucket digging force | 28.6 | kN |
| Arm digging force | 20.3 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 18.2 | kW/rpm |
| Engine model | Yanmr 3TNV88F | — |
| Emission standard | Tier 4 Final | — |
| Maximum torque/speed | 85.3-94.2/1320 | N.m |
| Displacement | 1.642 | L |
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
