Operating weight
XE335G / XCMG
XCMG / GLOBAL EXPORTXE335G
XCMG equipment / Product profile
Available on request

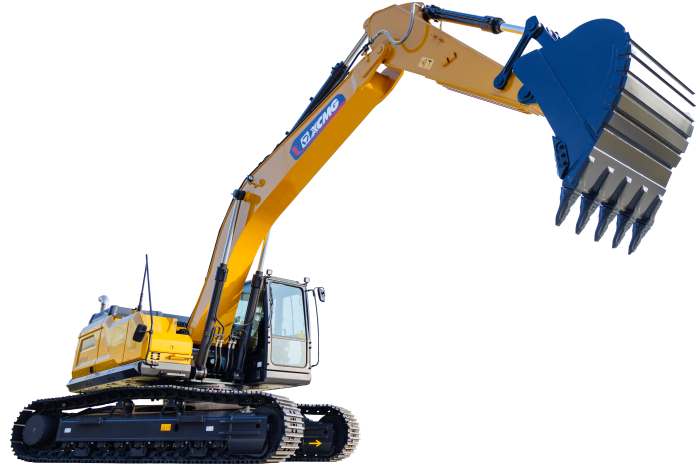

XCMG / Crawler Excavator
XE335G
The XCMG XE335G is a crawler excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Crawler ExcavatorKey specifications
Rated power/rpm
Bucket capacity
B Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight33500kg
02Engine+
ItemValueUnit
Engine brand/modelIsuzu / 6HK1—
Rated power/rpm212 / 2000kW/rpm
Direct injection√—
4-stroke√—
Water-cooled√—
Turbocharged√—
Number of cylinders6—
Displacement7.79L
03Performance+
ItemValueUnit
Travel speed (high/low)5.5 / 3.3km/h
Swing speed11.5r/min
Gradeability35° (70%)—
Ground specific pressure59.5kPa
Maximum traction force257kN
04Hydraulic system+
ItemValueUnit
Main pump2 × variable pumps—
Pilot pump1 × gear pump—
Maximum flow rate of main system2 × 306L/min
Main system pressure34.3MPa
Main system pressure (power-max pressure)37MPa
Pilot system pressure3.9MPa
Travel system pressure34.3MPa
Swing system pressure30MPa
05Cab standard+
ItemValueUnit
Cab standardISO 10262: 1998 (OPG) ISO 12117-2: 2008 (ROPS)—
06Oil capacity+
ItemValueUnit
Fuel tank capacity540L
Hydraulic oil tank capacity240L
07Dimensions+
ItemValueUnit
A Overall height3700mm
B Overall length10782mm
C Overall width3190mm
D Upper structure width2970mm
E Chassis width3190mm
F Track length4945mm
G Track height1084mm
H Standard track shoe width600mm
I Track wheelbase4028mm
J Track gauge2590mm
K Counterweight ground clearance1202mm
L Minimum ground clearance540mm
M Tail swing radius3388mm
08Standard+
ItemValueUnit
Length of boom6150mm
Length of arm2900mm
Bucket capacity1.6(reinforced)m³
Bucket capacity1.9(earthmoving)/1.4(rock)m³
