XE245G / XCMG

XCMG / GLOBAL EXPORTXE245G

XCMG equipment / Product profile

Available on request

XCMG / Crawler Excavator

XE245G

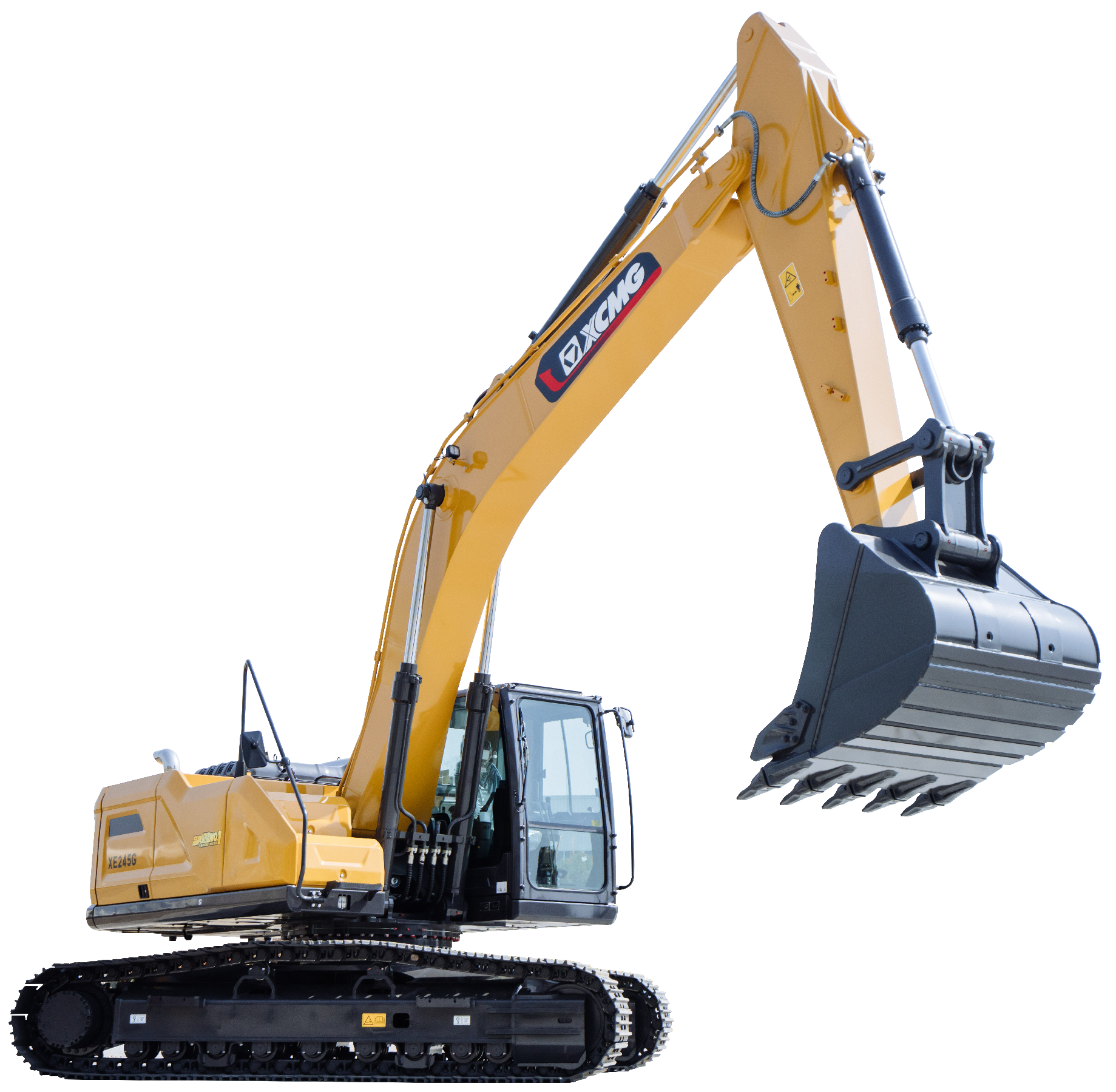

Name: XCMG XE245G
Brand: XCMG

The XCMG XE245G is a crawler excavator available through XeMach for international equipment sourcing and delivery.

Request a quote →WhatsApp sales ↗

Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.

Source updated: Jul 19, 2026View corporate source ↗

Key specifications

Crawler Excavator

0125800kg

Operating weight

02150/2050kW/rpm

Rated power/rpm

031.3 (reinforced)m³

Bucket capacity

0410250mm

B Overall length

Technical specifications

Published reference values are grouped by system for quick engineering review.

01General+

ItemValueUnit

Operating weight25800kg

02Engine+

ItemValueUnit

Engine brand/modelCummins QSB7 (indicated as OSB7)—

Rated power/rpm150/2050kW/rpm

Direct injection✓—

4-stroke✓—

Water-cooled✓—

Turbocharged✓—

Number of cylinders6—

Displacement6.7L

03Performance+

ItemValueUnit

Travel speed (high/low)5.2/3.3km/h

Swing speed10.6r/min

Gradeability35° (70%)—

Ground specific pressure53kPa

Maximum traction force220kN

04Hydraulic system+

ItemValueUnit

Main pump2 × variable pumps—

Pilot pump1 × Gear pump—

Maximum flow rate of main system2 × 240L/min

Main system pressure34.3MPa

Main system pressure (power-max pressure)37MPa

Pilot system pressure3.9MPa

Travel system pressure34.3MPa

Swing system pressure30.4MPa

05Cab standard+

ItemValueUnit

Cab standardISO 10262: 1998 (OPG) ISO 12117-2: 2008 (ROPS)—

06Oil capacity+

ItemValueUnit

Fuel tank capacity400L

Hydraulic oil tank capacity150L

07Dimensions+

ItemValueUnit

A Overall height3350mm

B Overall length10250mm

C Overall width3190mm

D Upper structure width2915mm

E Chassis width3190mm

F Track length4445mm

G Track height955mm

H Standard track shoe width600mm

I Track wheelbase3647mm

J Track gauge2590mm

K Counterweight ground clearance1143mm

L Minimum ground clearance482mm

M Tail swing radius3090mm

08Standard+

ItemValueUnit

Length of boom6000mm

Length of arm2960mm

Bucket capacity1.3 (reinforced)m³

Bucket capacity1.2(rocket) / 1.4 (reinforced)/1.5(earthmoving)m³
