U Series
XE235UCR

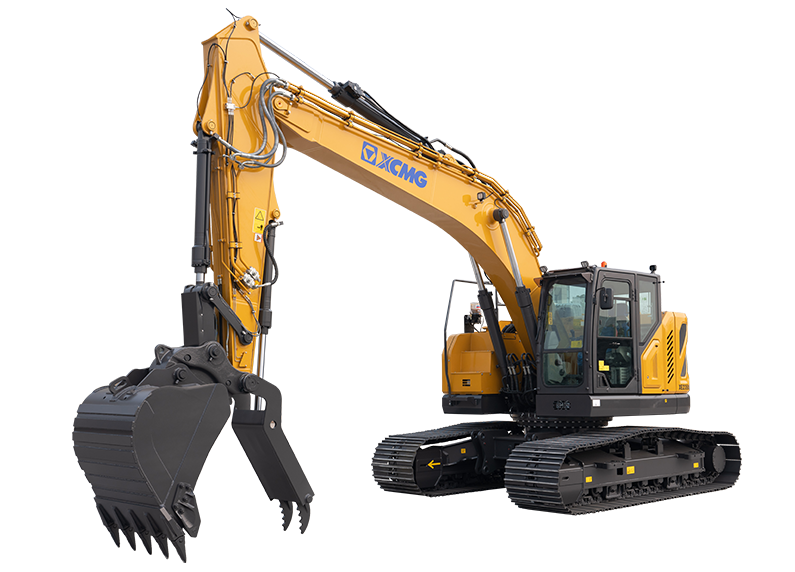

XCMG XE235UCR — U Series. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE235UCR — U Series. Review published parameters and request the configuration for your destination market from XEMACH.
Bucket capacity: 1 m³ · Operating weight: 26300 Kg · Rated power: 129 kW/rpm · Engine model: Cummins B6.7
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The newly upgraded XE235UCR builds on its reputation as one of the most sold and appreciated excavators of XCMG. All features have been designed on the basis of examining customer demands including suffi-cient power and hydraulic flow, versatility, low fuel consumpfion and emissions.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 26300 | Kg |
| Bucket capacity | 1 | m³ |
| Travel speed | 5.6/3.1 | km/h |
| Swing speed | 11.5 | r/min |
| Bucket digging force | 129.3 | kN |
| Arm digging force | 107.7 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 129 | kW/rpm |
| Engine model | Cummins B6.7 | — |
| Emission standard | Tier 4 Final | — |
| Maximum torque/speed | 881/1300 | N.m |
| Displacement | 6.7 | L |
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
