Operating weight
XE200G / XCMG
XCMG / GLOBAL EXPORTXE200G
XCMG equipment / Product profile
Available on request
XCMG / Crawler Excavator
XE200G

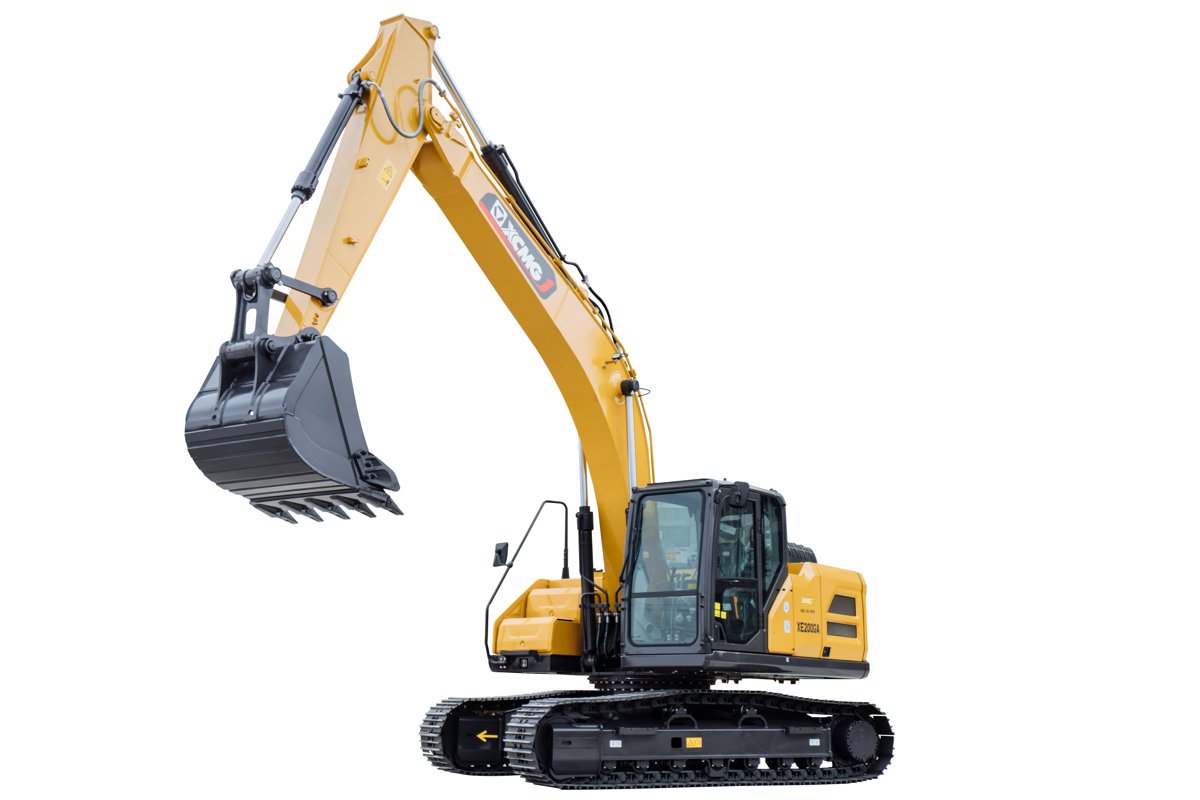

The XCMG XE200G is a crawler excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Crawler ExcavatorKey specifications
Rated power/rpm
Bucket capacity
B Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight21200kg
02Engine+
ItemValueUnit
Engine brand/modelCummins QSB7—
Rated power/rpm135/2050kW/rpm
Direct injection√—
4-stroke√—
Water-cooled√—
Turbocharged√—
Number of cylinders6—
Displacement6.7L
03Performance+
ItemValueUnit
Travel speed (high/low)5.3/2.9km/h
Swing speed11.6r/min
Gradeability35—
Ground specific pressure46.9kPa
Maximum traction force184kN
04Hydraulic system+
ItemValueUnit
Main pump2 × variable pumps—
Pilot pump1 × Gear pump—
Maximum flow rate of main system2 x 218L/min
Main system pressure34.3MPa
Main system pressure (power-max pressure)37MPa
Pilot system pressure3.9MPa
Travel system pressure37MPa
Swing system pressure28MPa
05Cab standard+
ItemValueUnit
Cab standardISO 10262 : 1998 (OPG) ISO 12117-2 : 2008 (ROPS)—
06Oil capacity+
ItemValueUnit
Fuel tank capacity400L
Hydraulic oil tank capacity220L
07Dimensions+
ItemValueUnit
A Overall height3100mm
B Overall length9625mm
C Overall width2910mm
D Upper structure width2830mm
E Chassis width2890mm
F Track length4155mm
G Track height900mm
H Standard track shoe width600mm
I Track wheelbase3366mm
J Track gauge2290mm
K Counterweight ground clearance1050mm
L Minimum ground clearance486mm
M Tail swing radius2890mm
08Standard+
ItemValueUnit
Length of boom5680mm
Length of arm2710mm
Bucket capacity0.93 (Reinforced)m³
Bucket capacity1.0/1.1(earthmoving） 0.9/1.0（reinforced)m³
Machine enquiry
Build your XE200G delivery plan.
Tell us the destination, application and preferred configuration. Our machinery team will confirm availability and export details.
Request a quote →
