U Series

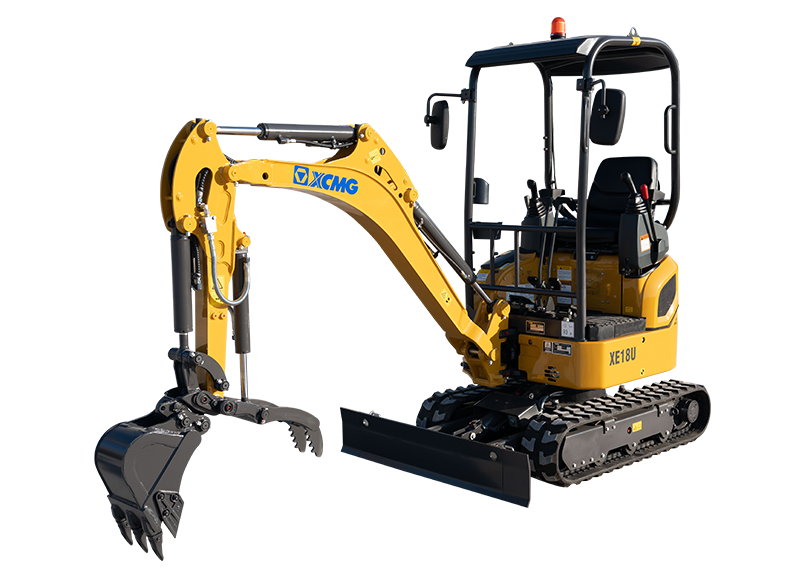

XE18U(Canopy)
XCMG XE18U(Canopy) — U Series. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
Overview
XCMG XE18U(Canopy) — U Series. Review published parameters and request the configuration for your destination market from XEMACH.
Bucket capacity: 0.04 m³ · Operating weight: 1795 Kg · Rated power: 11.8 kW/rpm · Engine model: Kubota D902
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

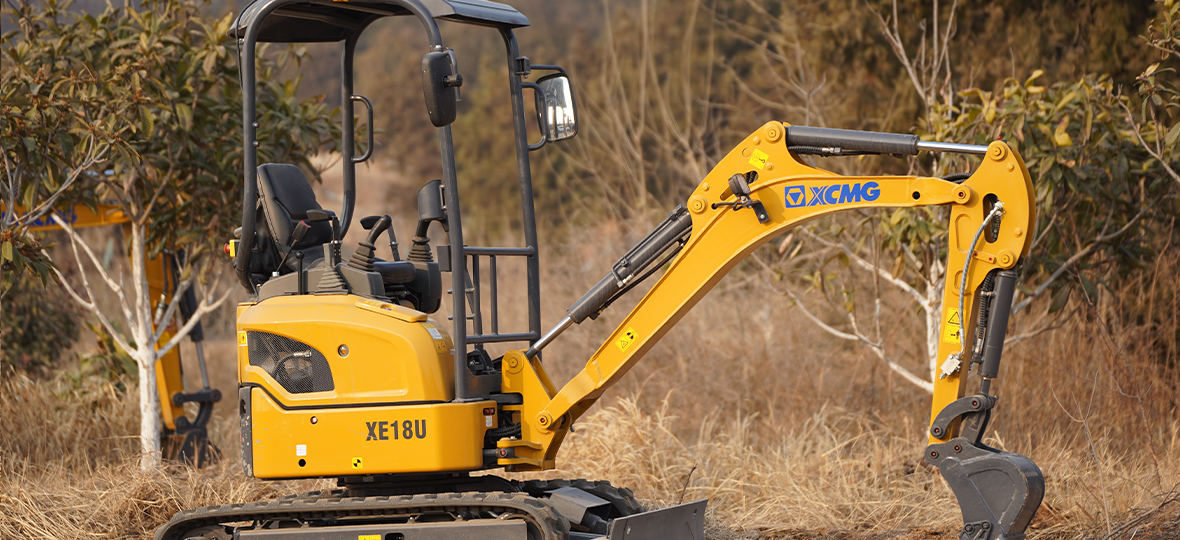

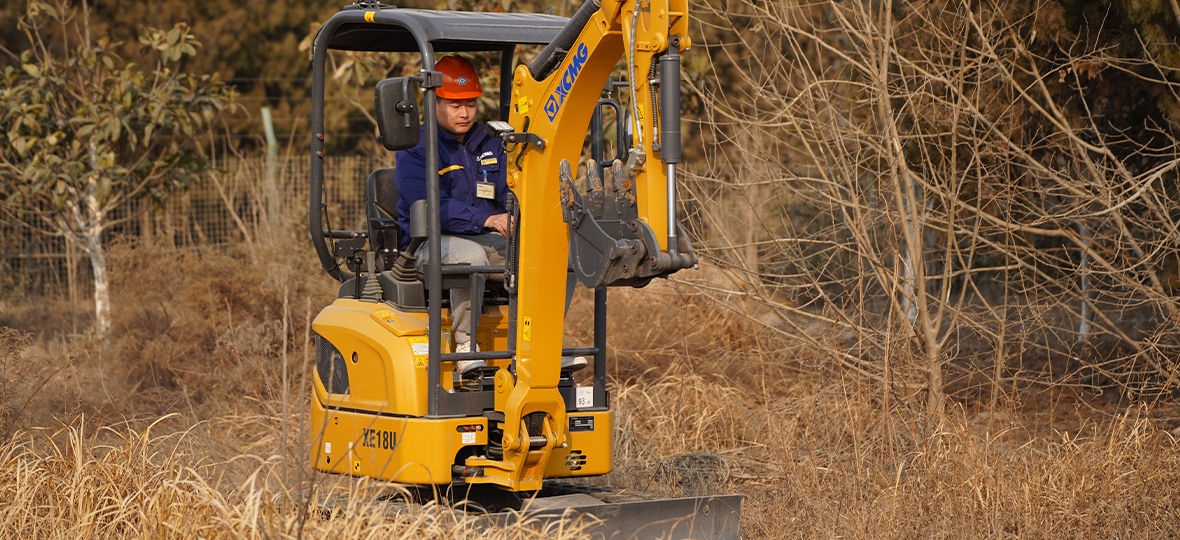

The XE18U comes with every feature you expect from a mini excavator in its tonnage.Variable angle boom, 60° to the left and 50° to the right, zero swing tail, and retractable undercarriage give you an edge when undertaking operations in confined sites such indoors, basement, garden, and community landscapes.Powered by a reliable 15.8 hp Kubota engine, you can count on it to finish tough jobs in various operating conditions. When it comes to efficiency, versatility is a critical factor. That's why the machine is compatible to multiple attachments that can be installed within a short period of time with its manul quick coupler. You will finish the operations with ease and comfort in the jobsite.
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 1795 | Kg |
| Bucket capacity | 0.04 | m³ |
| Travel speed | 3.3/2 | km/h |
| Swing speed | 9 | r/min |
| Bucket digging force | 16 | kN |
| Arm digging force | 10 | kN |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 11.8 | kW/rpm |
| Engine model | Kubota D902 | — |
| Emission standard | Tier 4 Final | — |
| Maximum torque/speed | 51.3/1800 | N.m |
| Displacement | 0.898 | L |
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
