Operating weight
XE155G / XCMG
XCMG / GLOBAL EXPORTXE155GA
XCMG equipment / Product profile
Available on request
XCMG / Crawler Excavator
XE155G

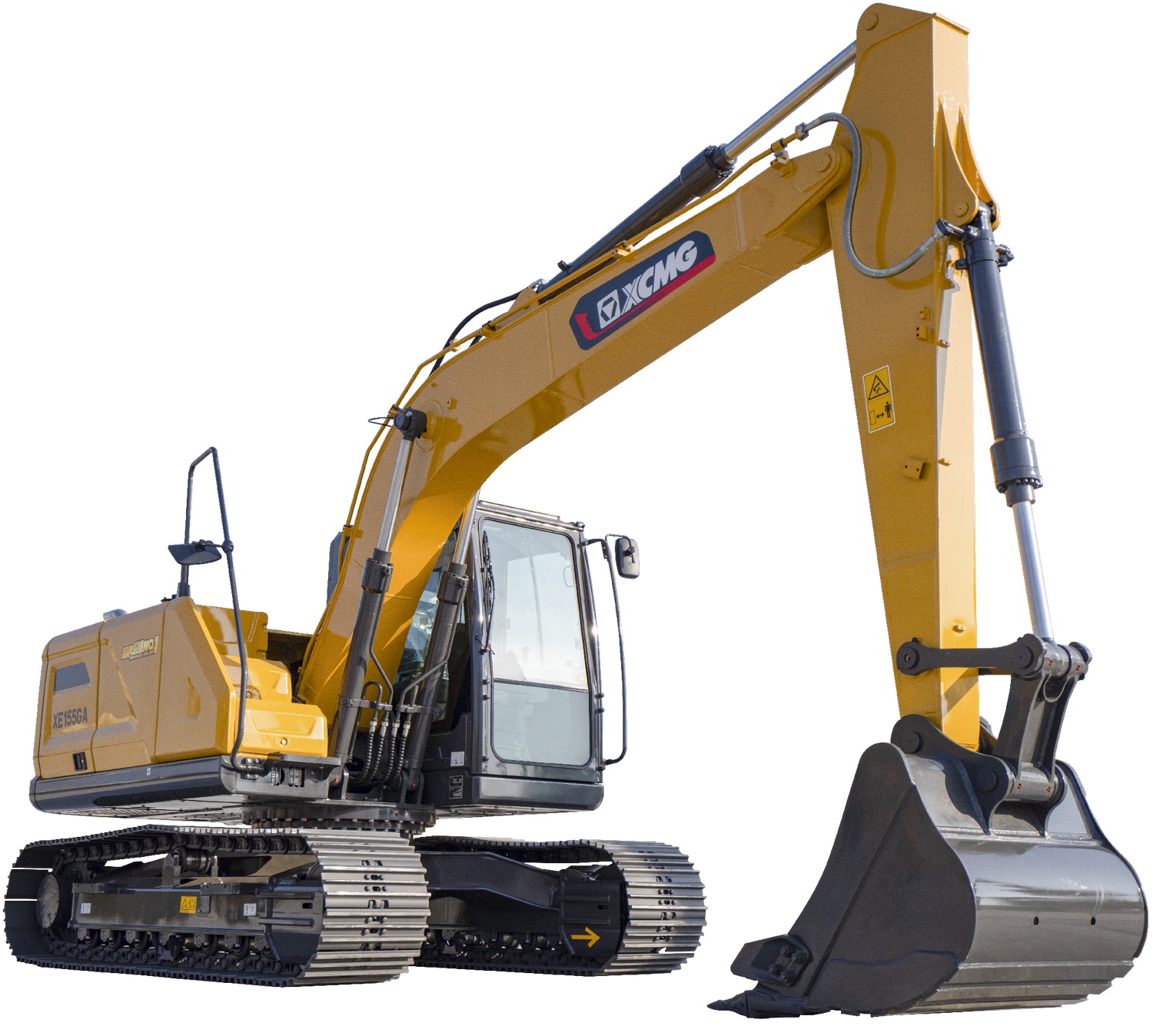

The XCMG XE155G is a crawler excavator available through XeMach for international equipment sourcing and delivery.
Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.
Source updated: Jul 19, 2026View corporate source ↗
01
Crawler ExcavatorKey specifications
Rated power/rpm
Bucket capacity
B Overall length
02
Technical specifications
Published reference values are grouped by system for quick engineering review.
01General+
ItemValueUnit
Operating weight14600kg
02Engine+
ItemValueUnit
Engine brand/modelF4.5CS4129—
Rated power/rpm96/2200kW/rpm
Direct injection√—
4-stroke√—
Water-cooled√—
Turbocharged√—
Number of cylinders4—
03Performance+
ItemValueUnit
Travel speed (high/low)5.3/3.0km/h
Swing speed11r/min
Gradeability35—
Ground specific pressure37kPa
Maximum traction force134kN
04Hydraulic system+
ItemValueUnit
Main pump2 × variable pumps—
Pilot pump1 × Gear pump—
Maximum flow rate of main system2 × 129L/min
Main system pressure34.3MPa
Main system pressure (power-max pressure)37MPa
Pilot system pressure3.9MPa
Travel system pressure34.4MPa
Swing system pressure25MPa
05Cab standard+
ItemValueUnit
Cab standardISO 10262 : 1998 (OPG) ISO 12117-2 : 2008 (ROPS)—
06Oil capacity+
ItemValueUnit
Fuel tank capacity240L
Hydraulic oil tank capacity95L
07Dimensions+
ItemValueUnit
A Overall height2950mm
B Overall length7825mm
C Overall width2590mm
D Upper structure width2490mm
E Chassis width2590mm
F Track length3665mm
G Track height802mm
H Standard track shoe width600mm
I Track wheelbase2930mm
J Track gauge1990mm
K Counterweight ground clearance931mm
L Minimum ground clearance466mm
M Tail swing radius2360mm
08Standard+
ItemValueUnit
Length of boom4600mm
Length of arm2520mm
Bucket capacity0.65 (Reinforced bucket)m³
Bucket capacity0.32/0.4/0.61/0.72(earthmoving)/0.52(rock)m³
