XE150 / XCMG

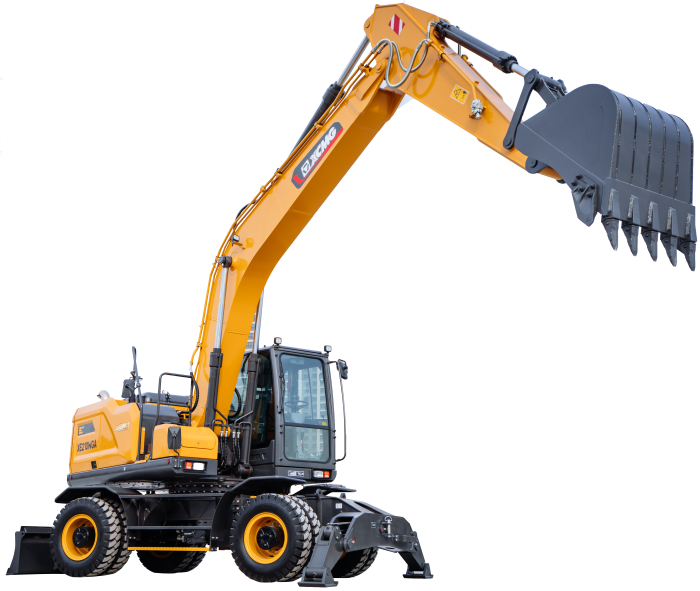

Representative family image

XCMG / GLOBAL EXPORTXE150

XCMG equipment / Product profile

Available on request

XCMG / Wheeled Excavator

XE150

Name: XCMG XE150
Brand: XCMG

The XCMG XE150 is a wheeled excavator available through XeMach for international equipment sourcing and delivery.

Request a quote →WhatsApp sales ↗

Technical data is reproduced from the XeMach corporate product catalog. Final configuration and specifications must be confirmed for the destination market.

Source updated: Jul 19, 2026View corporate source ↗

Key specifications

Wheeled Excavator

0114000kg

Operating weight

02108 / 2200kW/rpm

Rated power/speed

030.6m³

Bucket capacity

047714mm

A Overall length

Technical specifications

Published reference values are grouped by system for quick engineering review.

01General+

ItemValueUnit

Operating weight14000kg

02Engine+

ItemValueUnit

ModelQSF4.5—

Direct injection√—

Four strokes√—

Water cooled√—

Turbocharged√—

Air to air intercooler√—

Number of cylinders4—

Rated power/speed108 / 2200kW/rpm

Maximum torque/speed600 / 1200N·m

Piston displacement4.5L

03Main Performance+

ItemValueUnit

Travel speed (H/L)13089km/h

Swing speed12r/min

Gradeability70—

Bucket digging force95kN

Arm digging force72kN

Maximum tractive force77kN

04Hydraulic System+

ItemValueUnit

Main pump2 × Piston pumps—

Travel system pressure31.4bar

Swing system pressure25bar

Pilot system pressure3.9bar

05Oil Capacity+

ItemValueUnit

Fuel tank capacity250L

Hydraulic tank capacity135L

06Dimensions+

ItemValueUnit

A Overall length7714mm

B Overall width2495mm

C Overall height3180mm

D Counterweight clearance1252mm

E Minimum ground clearance380mm

F Minimum tail swing radius2310mm

G Wheel base2800mm

H Tread width2 × 296mm

I Width of platform2490mm

J The distance from front axle to the rotary center1700mm

K Engine hood height2474mm

07Working Range+

ItemValueUnit

L1 Maximum digging reach7780mm

L2 Maximum ground digging radius7570mm

L3 Maximum digging height8190mm

L4 Maximum dumping height5855mm

L5 Maximum digging depth4630mm

L6 Maximum depth cut for 8 ft level bottom4325mm

L7 Maximum vertical wall digging depth4150mm

L9 Maximum dozer lifting height534mm

L10 Maximum dozer cutting depth98mm

08Standard+

ItemValueUnit

Length of boom4600mm

Length of arm2100mm

Bucket capacity0.6m³

09Optional+

ItemValueUnit

Length of boom–—

Length of arm2500—

Bucket capacity0.26 / 0.70—
