XCMG / XD135T(Stage Ⅲ)
XCMG equipment / Product profile

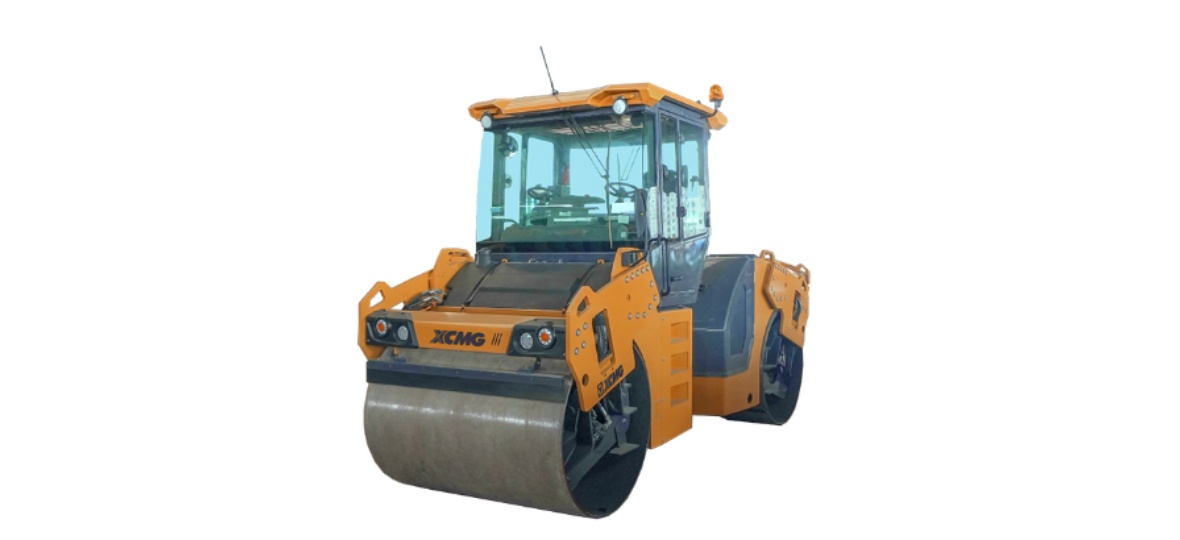

Double Drum Vibratory Roller
XD135T(Stage Ⅲ)
XCMG XD135T(Stage Ⅲ) — Double Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating weight13000 kg
Drum width2130 mm
Vibration frequency50/60 Hz
Rated power104 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XD135T(Stage Ⅲ) — Double Drum Vibratory Roller. Review published parameters and request the configuration for your destination market from XEMACH.
Operating weight: 13000 kg · Drum width: 2130 mm · Vibration frequency: 50/60 Hz · Rated power: 104 kW
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XD135T vibratory roller is designed to meet the requirements of high-end customers and special working conditions in high-end market. It is widely applicable to compacting asphalt pavement; layers of different materials and different thickness; large engineering projects such as roads, parking lots, airports; and base layer and sub-base layers. It is an ideal compacting equipment for asphalt top layer construction in highway management and maintenance.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Operating weight | 13000 | kg |
| Static linear load | 299/299 | N/cm |
| Vibration frequency | 50/60 | Hz |
| Excitation force | 178/96 | kN |
| Theoretical gradeability | 35 | % |
| Model | Cummins QSF3.8 | — |
| Rated speed | 2200 | r/min |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Drum width | 2130 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Rated power | 104 | kW |
| Emission | EU Stage Ⅲ | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
