XCMG / XD120(Stage Ⅴ)
XCMG equipment / Product profile
Light Compaction Equipment
XD120(Stage Ⅴ)
XCMG XD120(Stage Ⅴ) — Light Compaction Equipment. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight2690/2850 kg
Rated Power17.1/24.6 kW
EngineKUBOTA
EmissionEU Stage V
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XD120(Stage Ⅴ) — Light Compaction Equipment. Review published parameters and request the configuration for your destination market from XEMACH.
Operating Weight: 2690/2850 kg · Rated Power: 17.1/24.6 kW · Engine: KUBOTA · Emission: EU Stage V
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)

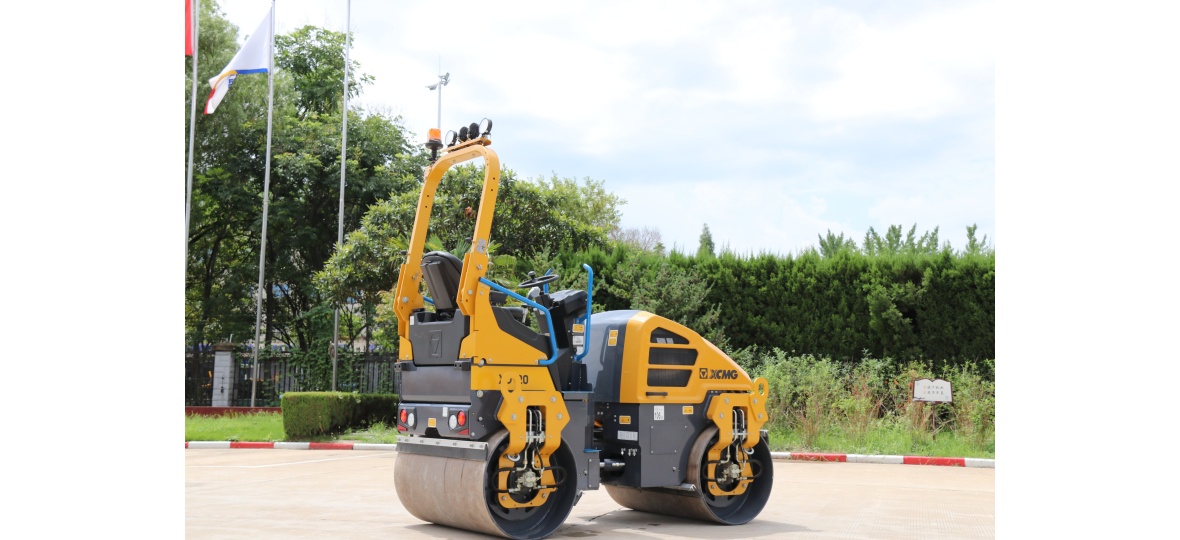

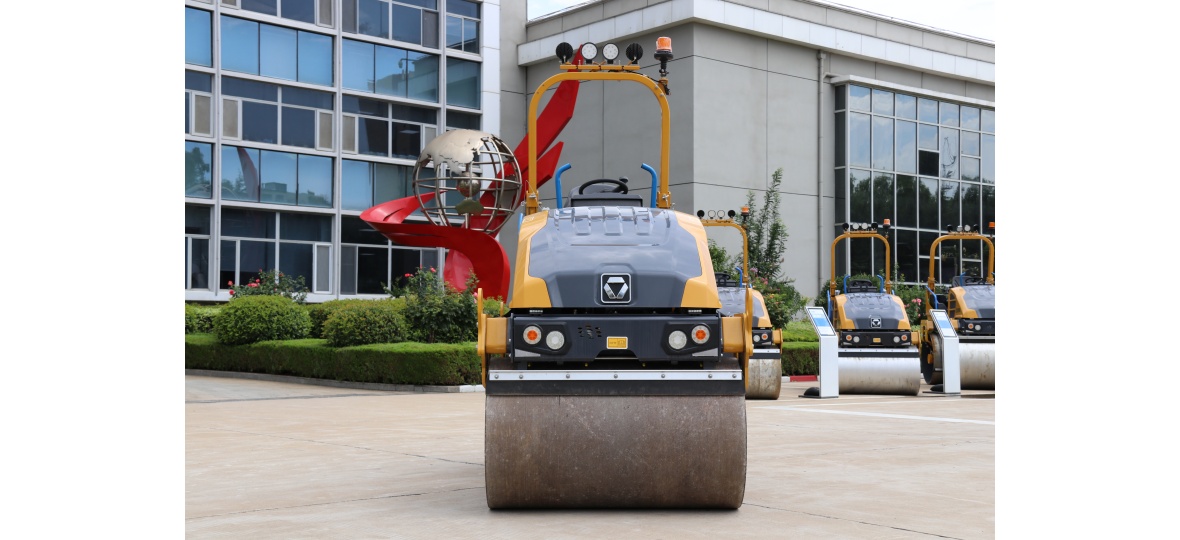

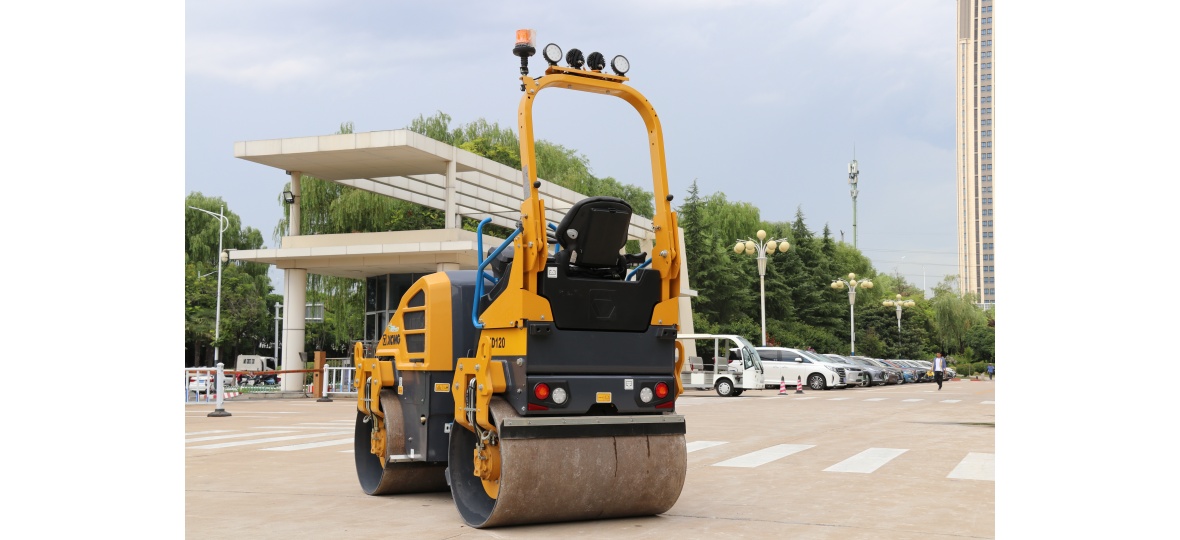

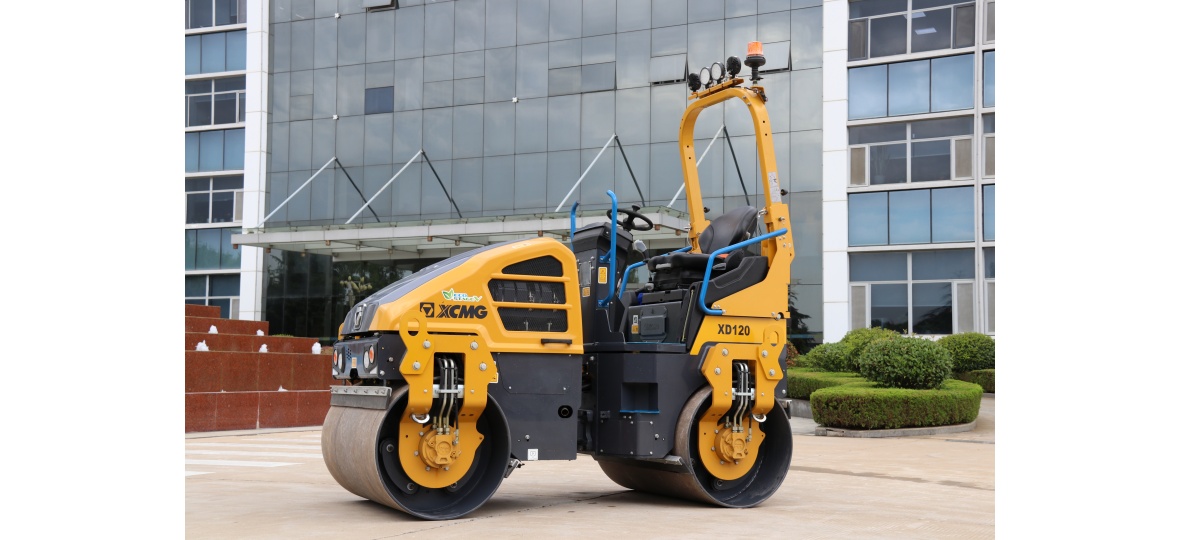

The XD120 vibratory roller is ideal for compacting newly constructed asphalt surfaces and maintaining roads. It can also be utilized for thin stabilized soil pavement layers. This equipment is particularly suitable for municipal maintenance and efficiently performs high-speed compaction of asphalt surfaces.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine | KUBOTA | — |
| Rated Power | 17.1/24.6 | kW |
| Emission | EU Stage V | — |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Vibration frequency | 67；63/67 | Hz |
| Operating Weight | 2690/2850 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Working Width | 1200 | mm |
| Dimensions | 2,610 x 1,286 x 2,795 | mm |
| Foldable ROPS Dimensions | 2,910 x 1,286 x 1,845 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Brochure
Brochure
File size: 4.9 MiB
Linked by the official product page
