XCMG / XCT80_Y1
XCMG equipment / Product profile
Truck Crane
XCT80_Y1

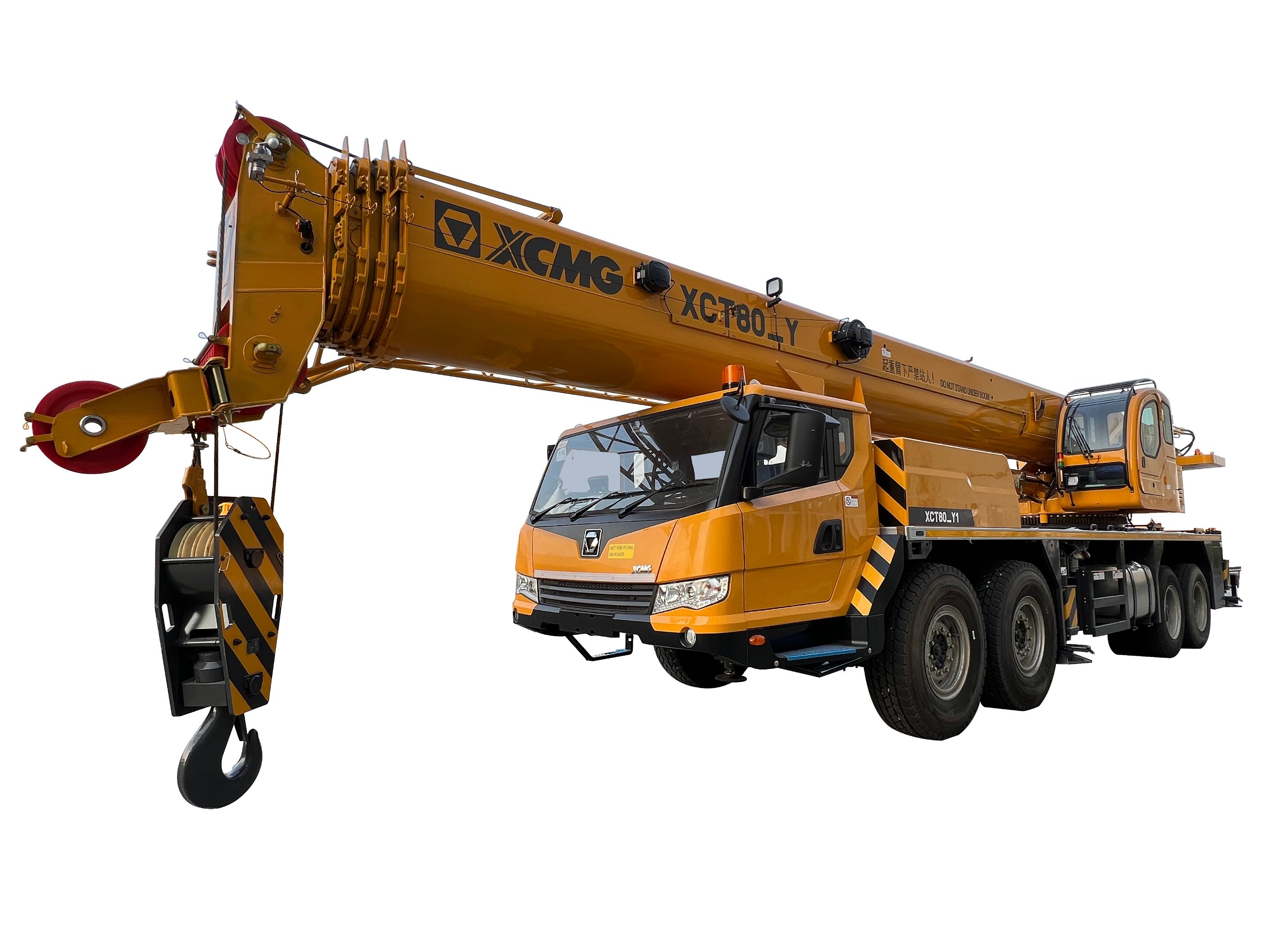

XCMG XCT80_Y1 — Truck Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity80 t
Max. hoist height65 m
Max.load moment2965 kN.m
Telescopic boom50.5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCT80_Y1 — Truck Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 80 t · Max. hoist height: 65 m · Max.load moment: 2965 kN.m · Telescopic boom: 50.5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCT80_Y1 is widely used for the lifting operations in general engineering projects, such as construction sites, urban renewal, communication and transportation, ports, bridges, oilfields and mines, electricity, water conservancy facilities and complex working environments.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 80 | t |
| Telescopic boom | 50.5 | m |
| Number of axles | 4 | — |
| Max.load moment | 2965 | kN.m |
| Drive/Steering | 8x4x4 | — |
| Driving speed | 48 | km/h |
| Dead Weight in Travel State | 46900 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 65 | m |
| Dimensions | 14985×2800×3790 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | WP10HG350E670 | — |
| Drive engine power | 257 | kw |
| Emission standard | BS-V | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
