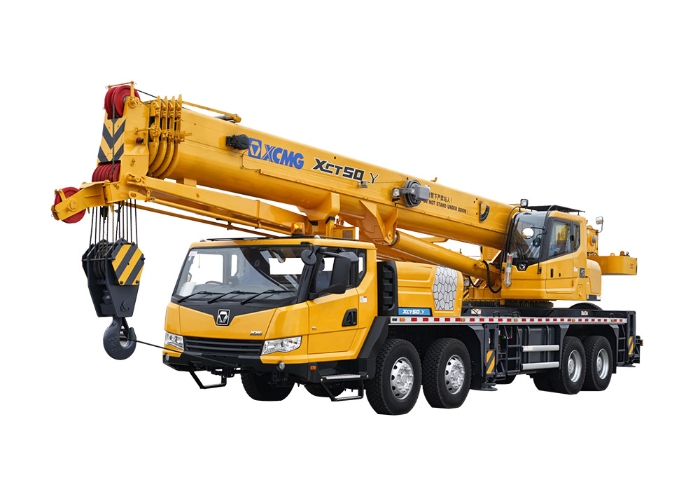

XCMG / XCT50_Y
XCMG equipment / Product profile
Truck Crane
XCT50_Y
XCMG XCT50_Y — Truck Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity50 t
Max. hoist height60 m
Max.load moment2050 kN.m
Telescopic boom44.5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCT50_Y — Truck Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 50 t · Max. hoist height: 60 m · Max.load moment: 2050 kN.m · Telescopic boom: 44.5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCT50_Y is widely used in urban infrastructure, construction sites, factory construction and other fields
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 50 | t |
| Telescopic boom | 44.5 | m |
| Number of axles | 4 | — |
| Max.load moment | 2050 | kN.m |
| Drive/Steering | 8x4x4 | — |
| Driving speed | 48 | km/h |
| Dead Weight in Travel State | 40100 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 60 | m |
| Dimensions | 14045x2790x3615 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | WP9H336E62 | — |
| Drive engine power | 247 | kw |
| Emission standard | BS-IV | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
