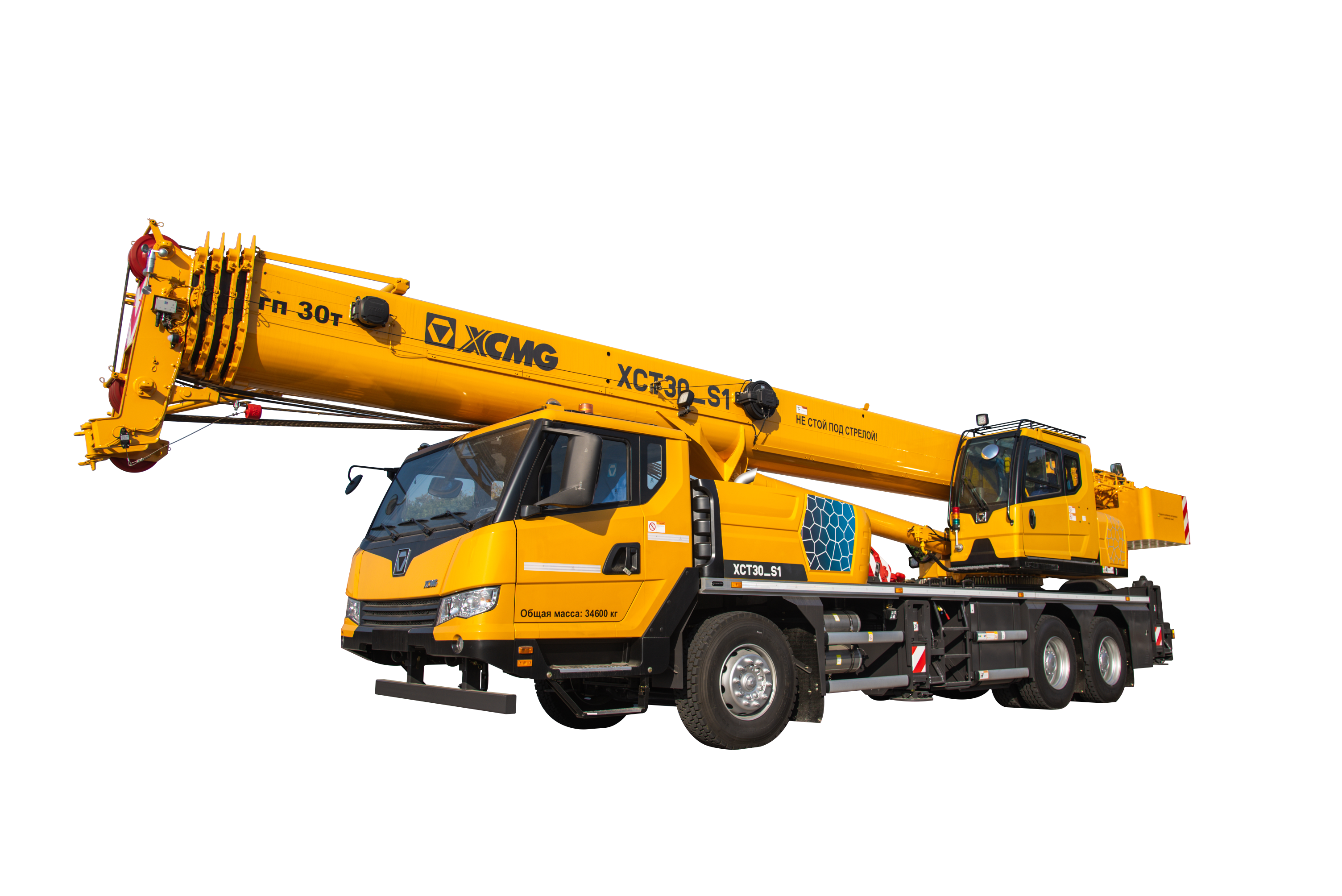

XCMG / XCT30_S1
XCMG equipment / Product profile
Truck Crane
XCT30_S1
XCMG XCT30_S1 — Truck Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity30 t
Max. hoist height51.1 m
Max.load moment1240 kN.m
Telescopic boom44 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCT30_S1 — Truck Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 30 t · Max. hoist height: 51.1 m · Max.load moment: 1240 kN.m · Telescopic boom: 44 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCT30_S1 is widely used in construction fields such as urban infrastructure (including subways and light rail), building/factory construction, and equipment auxiliary lifting.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 30 | t |
| Telescopic boom | 44 | m |
| Number of axles | 3 | — |
| Max.load moment | 1240 | kN.m |
| Drive/Steering | 6x4x2 | — |
| Driving speed | 90 | km/h |
| Dead Weight in Travel State | 34600 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 51.1 | m |
| Dimensions | 13748×2550×3460 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | SC9DF340Q5 | — |
| Drive engine power | 251 | kw |
| Emission standard | Euro V | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
