XCMG / XCS1009K
XCMG equipment / Product profile

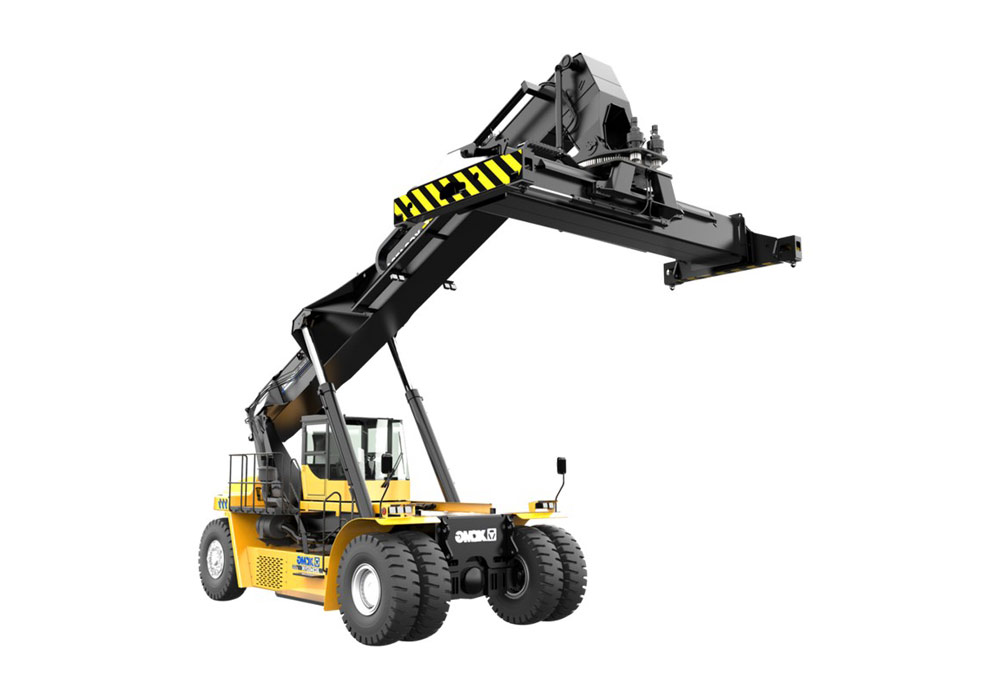

Container Reach Stacker
XCS1009K
XCMG XCS1009K — Container Reach Stacker. Review published parameters and request the configuration for your destination market from XEMACH.
Max Lifting capacity10 t
Lifting height16200 mm
Rated power178 rpm
Engine modelCummins
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCS1009K — Container Reach Stacker. Review published parameters and request the configuration for your destination market from XEMACH.
Max Lifting capacity: 10 t · Lifting height: 16200 mm · Rated power: 178 rpm · Engine model: Cummins
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
XCMG empty container handler is a special machine for container loading and unloading, stacking and horizontal transportation. It is suitable for the lifting and stacking operation of container heavy loads in the dock, small and medium railway station, warehouse and other places.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine model | Cummins | — |
| Rated power | 178 | rpm |
| Stage Emission | EU3/Tier 3, EU4/Tier 4F, EU5 | — |
| Battery | Not published | — |
| Battery capacity | Not published | kWh |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Transmission | DANA TE14 | — |
| Axle | Kessler | — |
| Max Lifting capacity | 10 | t |
| Stacking | 6 high,3 deep | toplift |
| Motor | Not published | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Lifting height | 16200 | mm |
| Wheelbase | 5000 | mm |
| Dimension | 10,850*6,053*4,000 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
