Rough Terrain Crane
XCR90_E

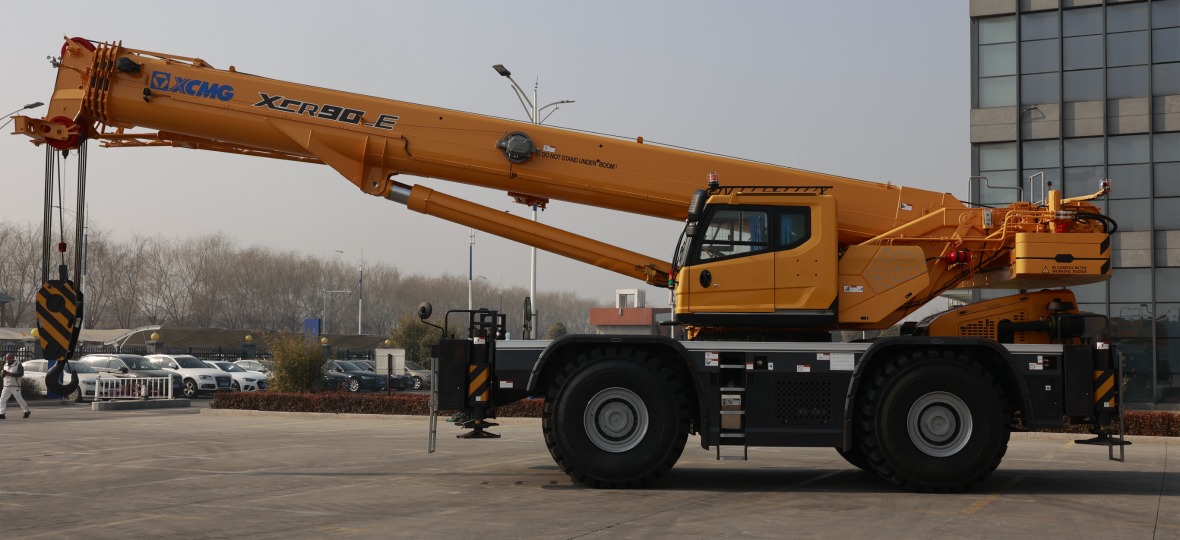

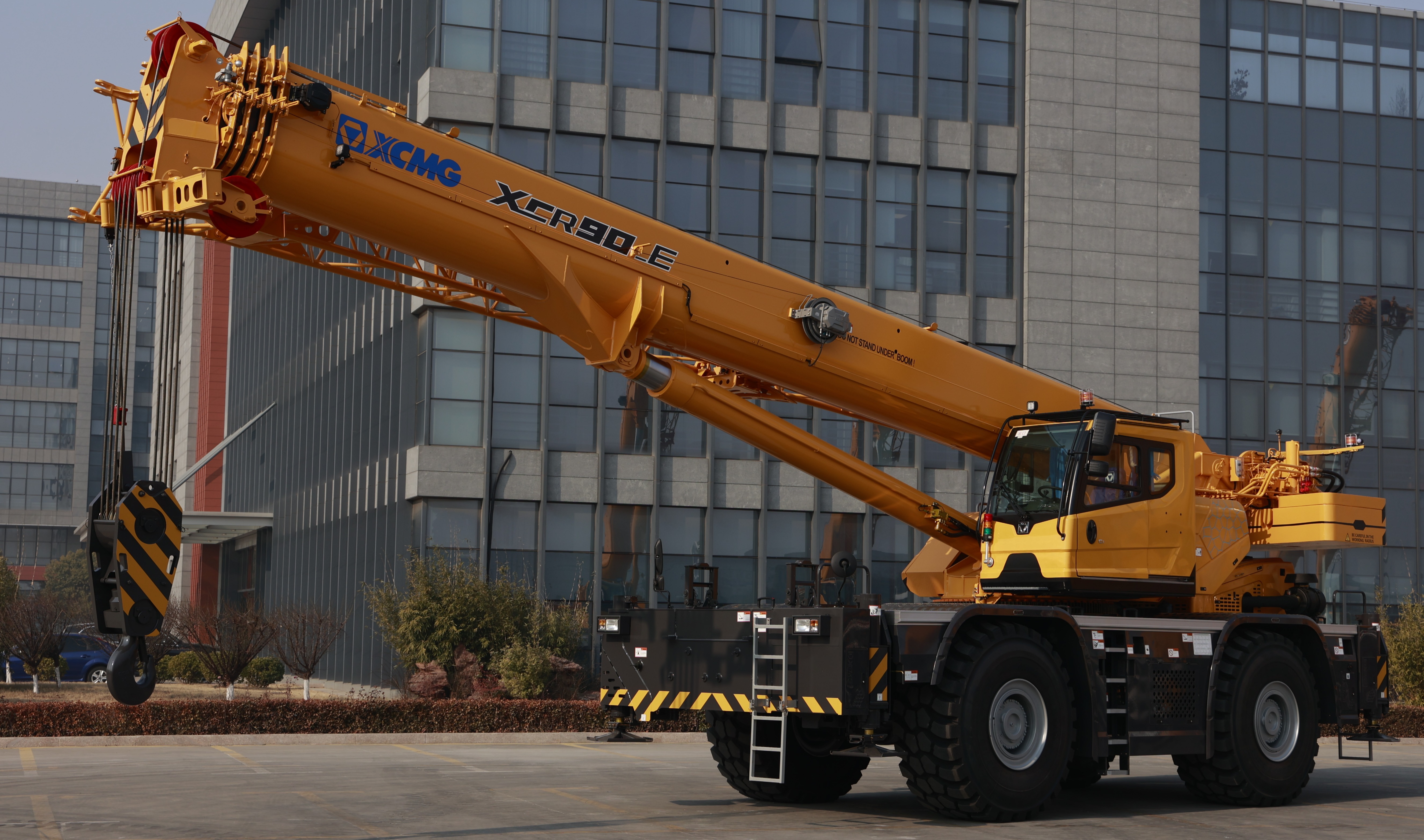

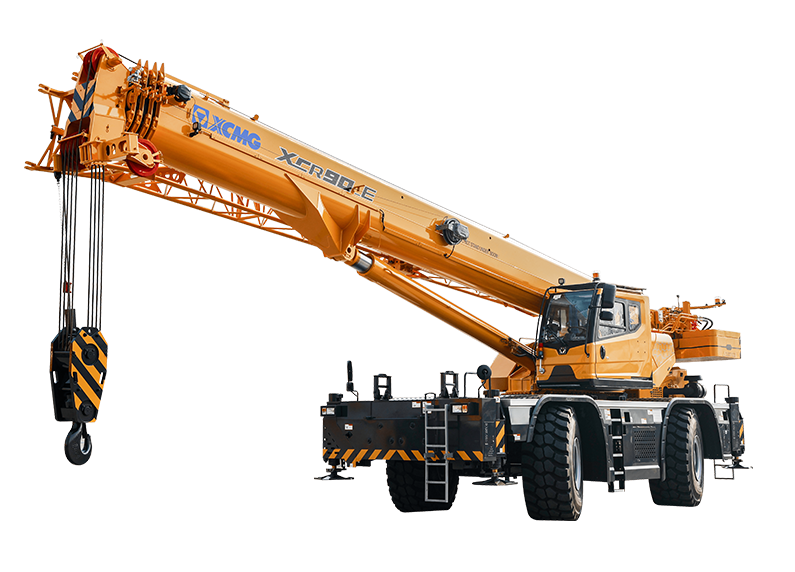

XCMG XCR90_E — Rough Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity90 t
Max. hoist height63.1 m
Max.load moment2840 kN.m
Telescopic boom48 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCR90_E — Rough Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 90 t · Max. hoist height: 63.1 m · Max.load moment: 2840 kN.m · Telescopic boom: 48 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
Optimal matching design of the complete machine, traveling in the confined and height-limited space, strong adaptability for hoisting; extra-large comfortable cab + intelligent auxiliary system makes lifting easier.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 90 | t |
| Telescopic boom | 48 | m |
| Number of axles | 2 | — |
| Max.load moment | 2840 | kN.m |
| Drive/Steering | 4×2×4/4×4×4 | — |
| Driving speed | 25 | km/h |
| Dead Weight in Travel State | 53346 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 63.1 | m |
| Dimensions | 14468×3280×3898 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | Cummins B6.7 | — |
| Drive engine power | 209 | kw |
| Emission standard | EU Stage V | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
