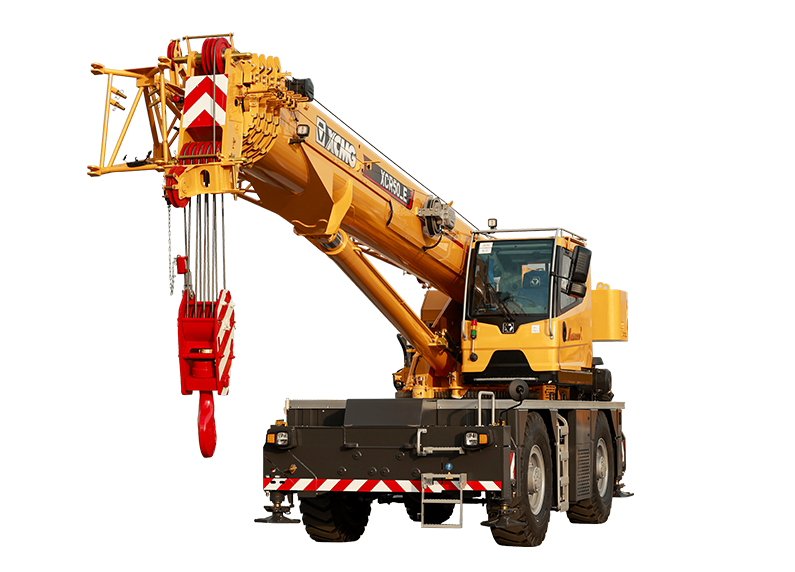

XCMG / XCR50_E
XCMG equipment / Product profile
Rough Terrain Crane
XCR50_E
XCMG XCR50_E — Rough Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity50 t
Max. hoist height45.7 m
Max.load moment1464 kN.m
Telescopic boom37.4 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCR50_E — Rough Terrain Crane. Review published parameters and request the configuration for your destination market from XEMACH.
Max. load capacity: 50 t · Max. hoist height: 45.7 m · Max.load moment: 1464 kN.m · Telescopic boom: 37.4 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
Optimal design of the XCR50_E shows strong adaptability in driving and lifting in confined and height-restricted spaces. The extra-large and comfortable cab, combined with the intelligent auxiliary system, ensures economical operation and more worry-free lifting.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. load capacity | 50 | t |
| Telescopic boom | 37.4 | m |
| Number of axles | 2 | — |
| Max.load moment | 1464 | kN.m |
| Drive/Steering | 4×4×4 | — |
| Driving speed | 25 | km/h |
| Dead Weight in Travel State | 31000 | kg |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Max. hoist height | 45.7 | m |
| Dimensions | 11331×2543×3421 | mm |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Drive engine model | Cummins B6.7 | — |
| Drive engine power | 168 | kw |
| Emission standard | EU Stage V | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
