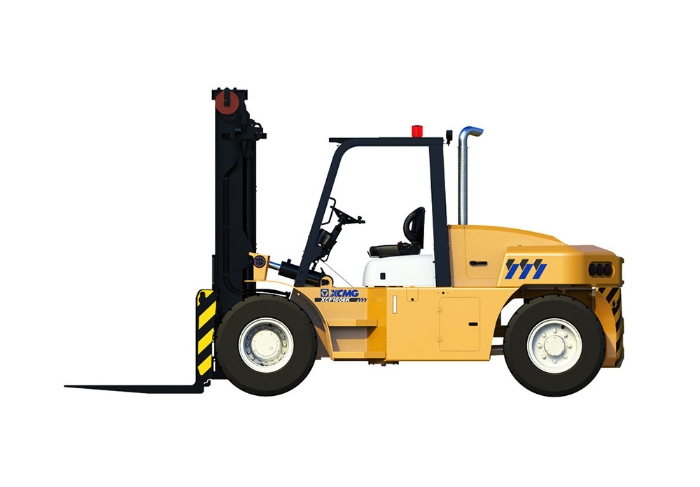

XCMG / XCF1006K
XCMG equipment / Product profile
Counterbalanced forklift
XCF1006K
XCMG XCF1006K — Counterbalanced forklift. Review published parameters and request the configuration for your destination market from XEMACH.
Rated capacity1000 kg
Maximum lifting height3000 mm
Overall weight12900 kg
Maximum travelling speed （unloaded\loaded）22/17 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG XCF1006K — Counterbalanced forklift. Review published parameters and request the configuration for your destination market from XEMACH.
Rated capacity: 1000 kg · Maximum lifting height: 3000 mm · Overall weight: 12900 kg · Maximum travelling speed （unloaded\loaded）: 22/17 km/h
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
Counter-balanced Forklift is Streamlined shape, full suspension structure, mainstream configuration, excellent radiator Counter-balanced forklift truck is not only suitable for loading and unloading of goods and short distance transportation, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment. It can also be used to handle steel coils, bulk materials, concrete, logs, 20 'containers and other materials with special tools.It applys to logistics areas such as freight yards, warehouses, ports, docks, railway and highway transfer stations
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Overall weight | 12900 | kg |
| Rated capacity | 1000 | kg |
| Maximum travelling speed （unloaded\loaded） | 22/17 | km/h |
| Maximum lifting speed （unloaded\loaded） | 400/250 | km/h |
| Maximum gradeability（loaded） | 0.2 | — |
| Load center | 600 | mm |
| Minimum turning radius | 400 | — |
| Type of mast Secondary standard type | Not published | — |
| Fork adjustment range | 440-2140 | mm |
| Optional | Not published | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Maximum lifting height | 3000 | mm |
| Dimensions without fork | 4270×2165×2845 | — |
| Wheel base | 2800 | mm |
| Fork dimensions | 1220×175×80 | mm |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
