Integral Asphalt Plant-Mix Hot Recycling Equipment

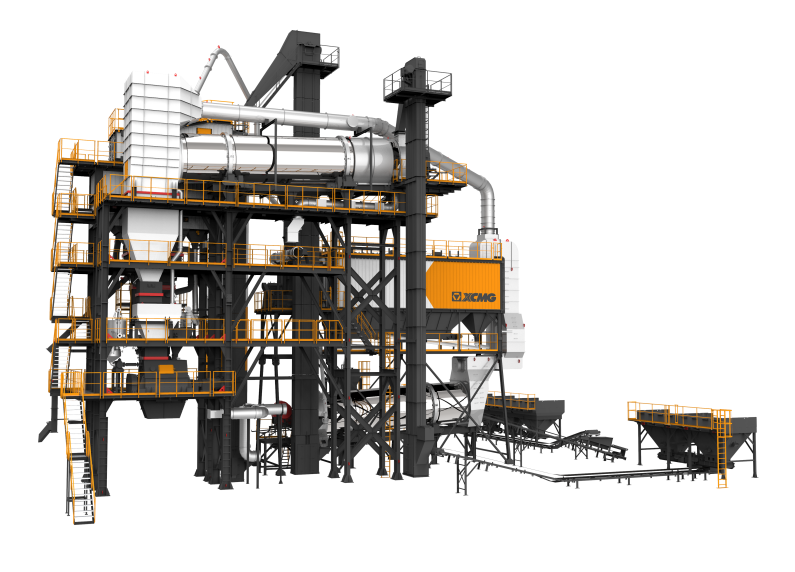

XCMG XARP325H — Integral Asphalt Plant-Mix Hot Recycling Equipment. Review published parameters and request the configuration for your destination market from XEMACH.
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
XCMG XARP325H — Integral Asphalt Plant-Mix Hot Recycling Equipment. Review published parameters and request the configuration for your destination market from XEMACH.
Rated productivity: 320 t/h · Heating capacity of recycled materials: 160 t/h · Nominal mixing capacity: 5300 kg/batch · Required operating power: 1176 kW
Reference data from XCMG Global. Final market configuration must be confirmed.

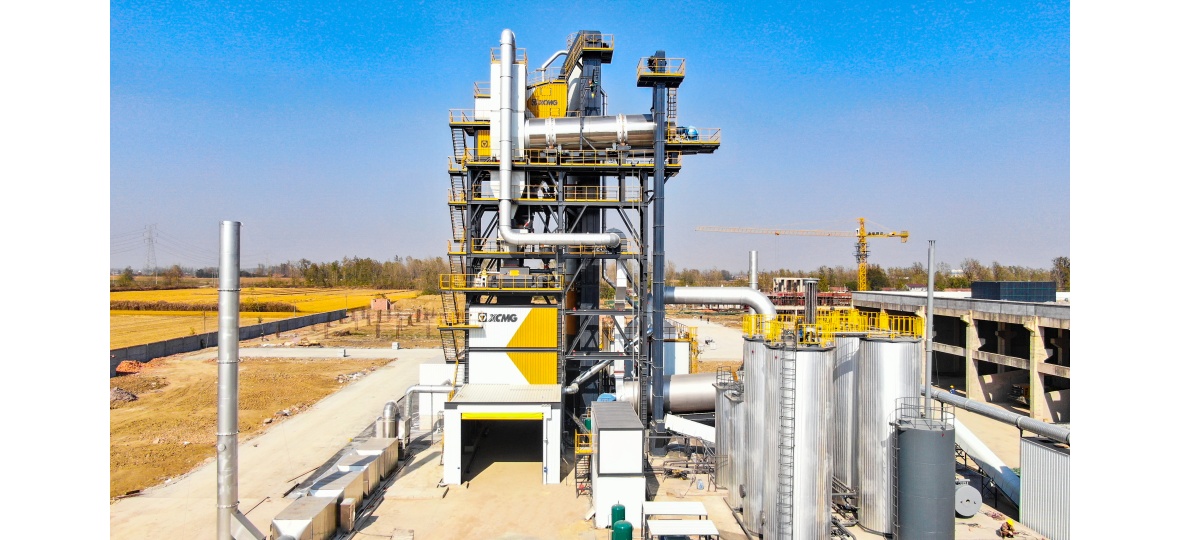

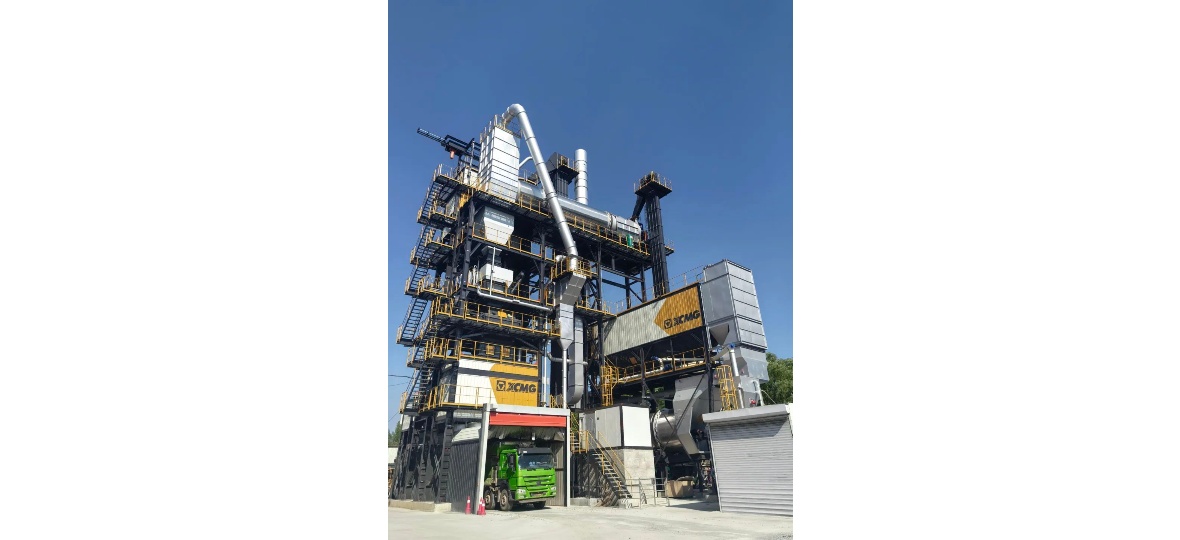

XARP325H Integral Asphalt Plant-Mix Hot Recycling Equipment is the state-of-the-art integral plant independently developed by XCMG, integrating the raw material plant, hot recycling plant. This integral plant can produce asphalt mixture at all levels, modified asphalt mixture, etc.which can fully meet the requirements of projects such as highways, classified roads, municipal roads, airports, dams and freight yards.
Values and units are preserved as published. Missing speed or version information is not inferred.
| Item | Value | Unit |
|---|---|---|
| Rated productivity | 320 | t/h |
| Heating capacity of recycled materials | 160 | t/h |
| Nominal mixing capacity | 5300 | kg/batch |
| Minimum installation area | 1800(45m×40m) | m² |
| Item | Value | Unit |
|---|---|---|
| Required operating power | 1176 | kW |
| Maximum single unit power | ≥220 | kW |
