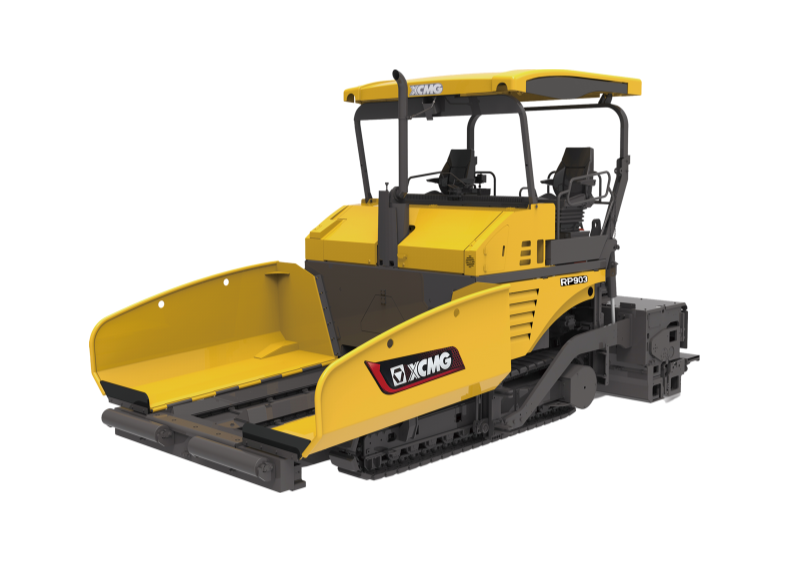

XCMG / RP903XCMG RP903 — Compact Tracked PaverCompact Tracked Paver
XCMG equipment / Product profile

Compact Tracked Paver

RP903

XCMG RP903 — Compact Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.

Theoretical productivity900 t/h
Diesel engine power164 kW
Basic paving width3.0~5.85 m
Max. paving width9.15 m

Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:

01

Overview

Published reference specifications

XCMG RP903 — Compact Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.

Theoretical productivity: 900 t/h · Diesel engine power: 164 kW · Basic paving width: 3.0~5.85 m · Max. paving width: 9.15 m

Reference data from XCMG Global. Final market configuration must be confirmed.

Original manufacturer description (English)

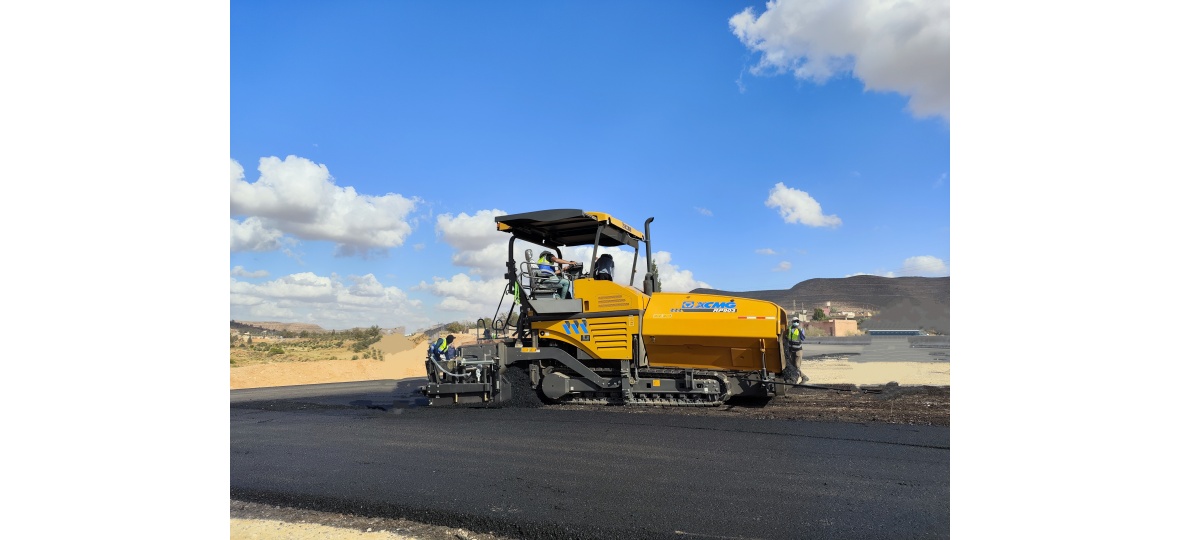

RP903 Paver is one of the important models of 3 series large paver. According to the domestic and international market demand, 9m largeretractable Paver is developed on the basis of current large and medium-sized Paver. This Paver is mainly used for surface asphalt paving construction, giving consideration to stable soil material paving. Equipped with a new generation of intelligent control system.this machine adopts the most advanced technologies in the world today, such as full hydraulic drive, microcomputer control, left and right independent Drive, ultrasonic material level sensing control, electronic automatic leveling, vibrating compaction, etc, this machine has the advantages of good paving stability, uniform feeding and distributing material high precompaction density, good flatness, comfortable operation,con.venient maintenance, energy sving and environmental protection,etc...

02

Technical specifications

Values and units are preserved as published. Missing speed or version information is not inferred.

Dimensions +
ItemValueUnit
Basic paving width3.0~5.85m
Max. paving width9.15m
Transportation dimensions7180x2600x3180mm
Working Parameters +
ItemValueUnit
Max. paving thickness400mm
Working speed18m/min
Travel speed3km/h
Theoretical productivity900t/h
Hopper capacity15t
Total weight24~27t
Engine +
ItemValueUnit
Diesel engine power164kW
Engine ManufacturerCummins—
Engine ModelQSB6.7—
EmissionEU Stage Ⅲ—
03

Dimensions & working range

Basic paving width3.0~5.85 m
Max. paving width9.15 m
Transportation dimensions7180x2600x3180 mm
04

Documents

The same original PDF is shared by all six language versions.

PDF
Specification sheet

Datasheet_Paver_RP903_Cummins_EU Stage Ⅲ_EN_20260107

File size: 29.3 MiB

Related document — applicability not verified

Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.

PDF
Specification sheet

Datasheet_Paver_RP903_Cummins_EU Stage Ⅲ_EN_20260228

File size: 8.5 MiB

Related document — applicability not verified

Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.

PDF
Specification sheet

Datasheet_Paver_RP903_Cummins_EU Stage Ⅲ_EN_20260416

File size: 2.8 MiB

Related document — applicability not verified

Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.

Request maintenance manual ↗
