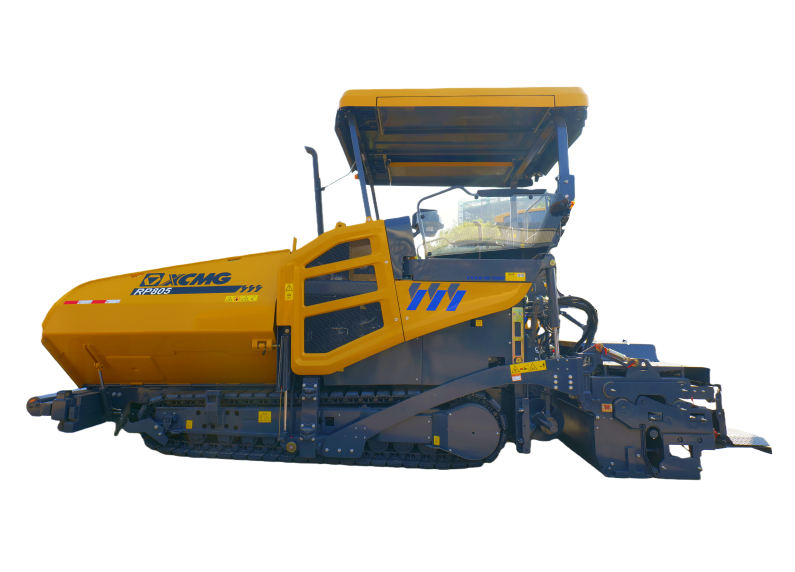

XCMG / RP805S
XCMG equipment / Product profile
Compact Tracked Paver
RP805S
XCMG RP805S — Compact Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity800 t/h
Diesel engine power142 kW
Basic paving width2.5~5.0 m
Max. paving width8 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG RP805S — Compact Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity: 800 t/h · Diesel engine power: 142 kW · Basic paving width: 2.5~5.0 m · Max. paving width: 8 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
RP805S Paver is one of the important models of 5 series middle paver.According to the domestic and international market demand,8m middle retractable Paver is developed on the basis of current middle Paver. This Paver is mainly used for surface asphalt paving construction,giving consideration to stable soil material paving. Equipped with a new generation of intelligent control system,this machine adopts the most advanced technologies in the world today,such as full hydraulic drive, microcomputer control, left and right Independent Drive ,ultrasonic material level sensing control, electronic automatic leveling,vibrating compaction,etc,this machine has the advantages of good paving stability, uniform feeding and distributing material ,high precompaction density, good flatness,comfortable operation,convenient maintenance ,energy sving and environmentalprotection,etc…
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Basic paving width | 2.5~5.0 | m |
| Max. paving width | 8 | m |
| Transportation dimensions | 6900x2550x3080 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. paving thickness | 300 | mm |
| Working speed | 0～25 | m/min |
| Travel speed | 0～4.0 | km/h |
| Theoretical productivity | 800 | t/h |
| Hopper capacity | 14 | t |
| Total weight | 20.5～21.8 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Diesel engine power | 142 | kW |
| Engine Manufacturer | Cummins | — |
| Engine Model | QSB6.7 | — |
| Emission | EU Stage Ⅲ | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Paver_RP805s_EN_20260105
File size: 1.4 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
Specification sheet
Datasheet_Paver_RP805S_EN_20260228
File size: 2.5 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
