XCMG / RP605
XCMG equipment / Product profile

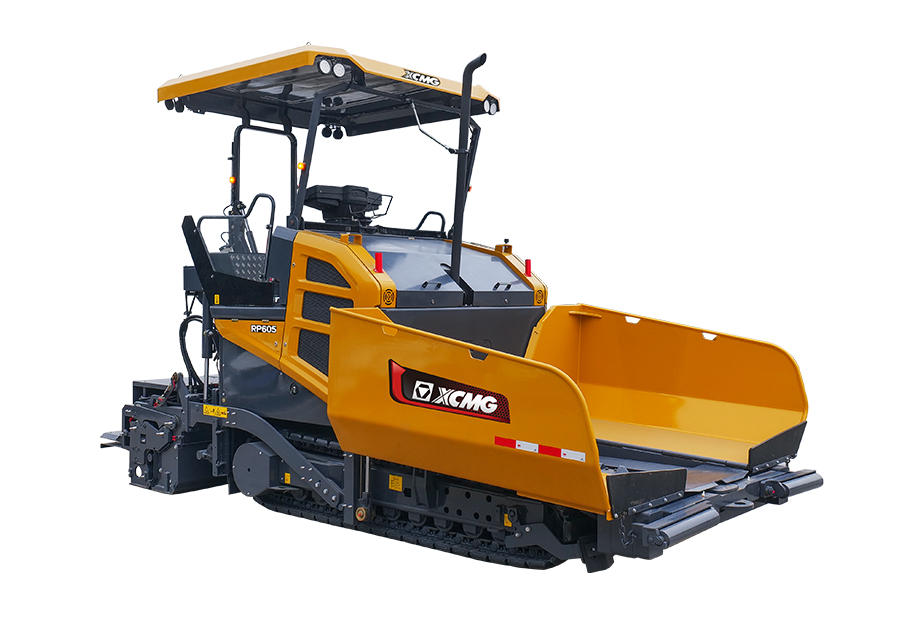

Mini Tracked Paver
RP605
XCMG RP605 — Mini Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity600 t/h
Diesel engine power119 kW
Basic paving width2.3～6(ES2360) / 2.25～4.5(E2245T) m
Max. paving width6 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG RP605 — Mini Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity: 600 t/h · Diesel engine power: 119 kW · Basic paving width: 2.3～6(ES2360) / 2.25～4.5(E2245T) m · Max. paving width: 6 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
RP605 is a medium-sized versatile tracked paver equipped with three-section full-extending screed, its paving width ranges from 2.3m to 6.0m without any attachments. Electric heated screed with high-power intelligent frequency conversion generator combines single tamper device, ensuring fast heating speed and high operation efficiency. This machine is wides pread applicable to paving works on sidewalks, cycle paths, farm tracks and other minor roads as well as maintenance and construction of classified highway.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Basic paving width | 2.3～6(ES2360) / 2.25～4.5(E2245T) | m |
| Max. paving width | 6 | m |
| Transportation dimensions | 6620×2550×3280(ES2360) / 6180×2550×3280(E2245T) | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. paving thickness | 300 | mm |
| Working speed | 27 | m/min |
| Travel speed | 4 | km/h |
| Theoretical productivity | 600 | t/h |
| Hopper capacity | 12 | t |
| Total weight | 16.8 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Diesel engine power | 119 | kW |
| Engine Manufacturer | Cummins | — |
| Engine Model | QSB4.5 | — |
| Emission | EU Stage Ⅲ | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Brochure
Brochure
File size: 4.7 MiB
Linked by the official product page
Specification sheet
Datasheet_Paver_RP605_EN_20260108
File size: 19.1 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
