XCMG / RP603L
XCMG equipment / Product profile
Wheeled Paver

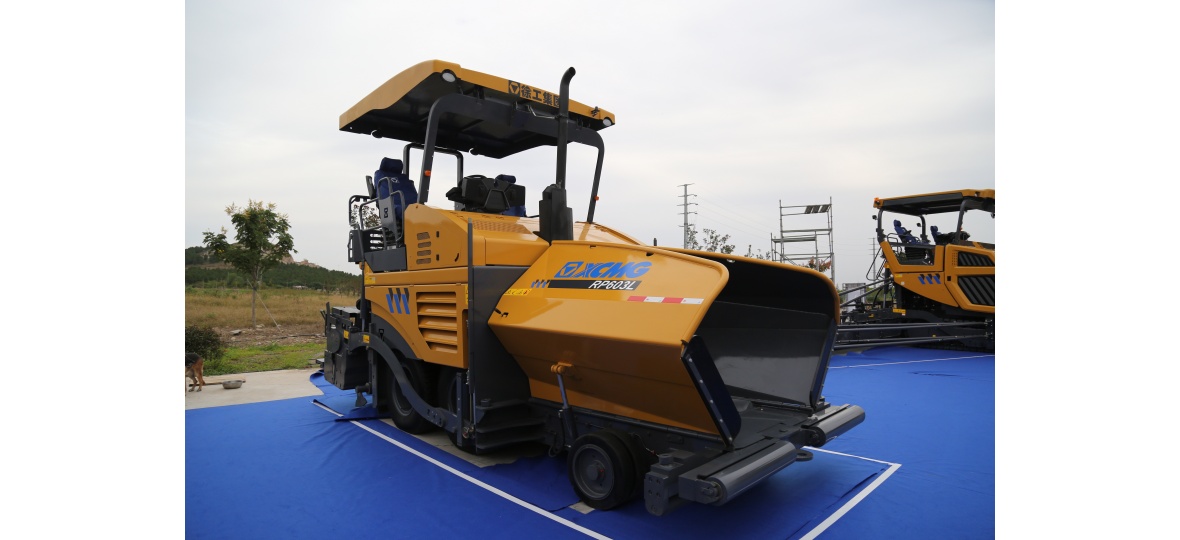

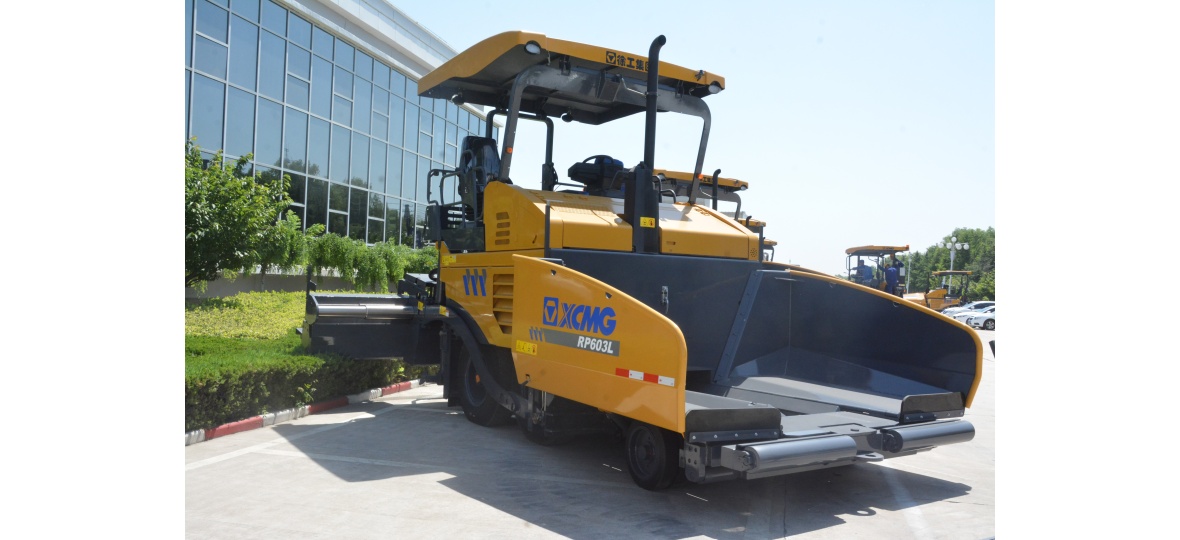

RP603L
XCMG RP603L — Wheeled Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity400 t/h
Diesel engine power103 kW
Basic paving width2.5~4.75 m
Max. paving width6 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG RP603L — Wheeled Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity: 400 t/h · Diesel engine power: 103 kW · Basic paving width: 2.5~4.75 m · Max. paving width: 6 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
RP603L is a medium-sized wheeled paver, equipped with E475T single tamper electric heating hydraulic extending screed. The infinite variable paving width, with the self-differential ASC, results in a stable and reliable paving quality and high adaptability. It is mainly applicable to the paving construction of asphalt pavement of graded highways and municipal roads, as well as repair and maintenance works of various roads. It is a perfect choice for where requires high flexibility.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Basic paving width | 2.5~4.75 | m |
| Max. paving width | 6 | m |
| Transportation dimensions | 6660×2600×3180 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. paving thickness | 260 | mm |
| Working speed | 23 | m/min |
| Travel speed | 17 | km/h |
| Theoretical productivity | 400 | t/h |
| Hopper capacity | 13 | t |
| Total weight | 16.9～17.5 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Diesel engine power | 103 | kW |
| Engine Manufacturer | SDEC | — |
| Engine Model | SC4H140G3 | — |
| Emission | EU Stage Ⅲ | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Paver_RP603L_EN_20260108
File size: 33.2 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
