XCMG / RP505
XCMG equipment / Product profile

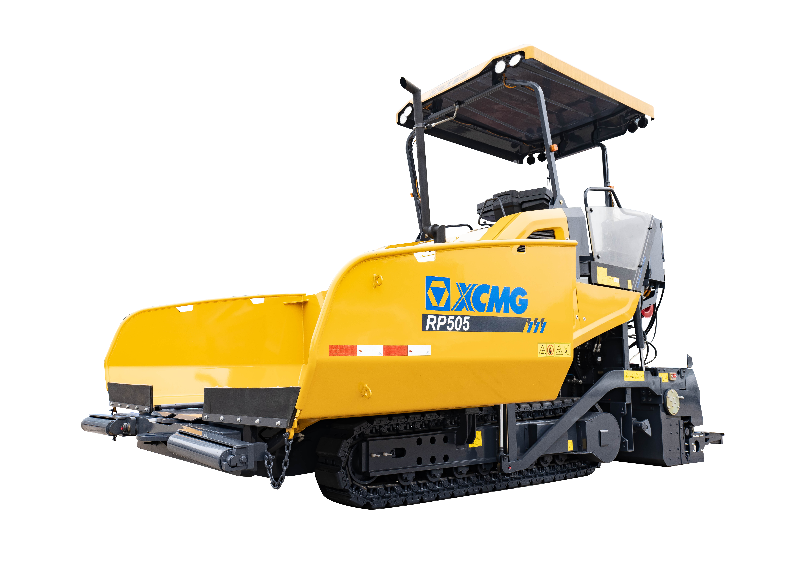

Mini Tracked Paver
RP505
XCMG RP505 — Mini Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity400 t/h
Diesel engine power104 kW
Basic paving width1.8～3.4 m
Max. paving width5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG RP505 — Mini Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity: 400 t/h · Diesel engine power: 104 kW · Basic paving width: 1.8～3.4 m · Max. paving width: 5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
RP505 is a tracked paver with compact dimensions for high traffic ability, with reinforced E340T hydraulic extending screed with electric heating function and single tamper unit, a specially designed 250 bolt-on extension, its maximum working width reaches up to 5.0m. The machine features high mobility, excellent operation capacity and high construction efficiency, which is the preferred product for pavement, bicycle path, rural road maintenance and high-grade road paving operation.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Basic paving width | 1.8～3.4 | m |
| Max. paving width | 5 | m |
| Transportation dimensions | 5864×1925×3106 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. paving thickness | 280 | mm |
| Working speed | 28 | m/min |
| Travel speed | 4 | km/h |
| Theoretical productivity | 400 | t/h |
| Hopper capacity | 12 | t |
| Total weight | 12.5 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Diesel engine power | 104 | kW |
| Engine Manufacturer | Cummins | — |
| Engine Model | QSF3.8 | — |
| Emission | EU Stage Ⅲ | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Paver_RP505_Cummins_EU Stage Ⅲ_EN_20260107
File size: 27.7 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
