XCMG / RP1355HD
XCMG equipment / Product profile
Universal Tracked Paver
RP1355HD

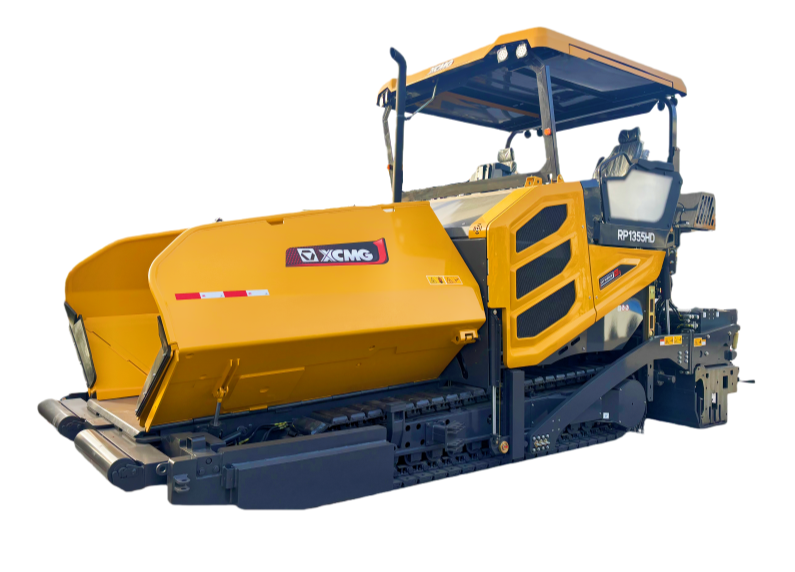

XCMG RP1355HD — Universal Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity1300 t/h
Diesel engine power242 kW
Basic paving width3 m
Max. paving width13.5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG RP1355HD — Universal Tracked Paver. Review published parameters and request the configuration for your destination market from XEMACH.
Theoretical productivity: 1300 t/h · Diesel engine power: 242 kW · Basic paving width: 3 m · Max. paving width: 13.5 m
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
The RP1355HD paver features reliable quality and excellent operating performance, and can be widely used for paving surface course materials on highways of various classifications. It is particularly suitable for construction requirements involving large-width, one-pass paving. This machine incorporates full hydraulic drive, microcomputer control, left and right independent drive, ultrasonic material level sensing control, electronic automatic leveling, tamper and other world's most advanced technology. The machine has good paving stability, uniform material feeding and distributing, high pre-compaction compaction, good evenness, comfortable operation, convenient maintenance, energy saving and environmental protection and other advantages. Imported key parts and manufacturing quality and reliability reaches the same level of similar imported products. It is the ideal equipment for paving asphalt concrete materials on pavement.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Basic paving width | 3 | m |
| Max. paving width | 13.5 | m |
| Overall dimensions | 7680×3210×4110 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Max. paving thickness | 550 | mm |
| Working speed | 25 | m/min |
| Travel speed | 3.3 | km/h |
| Theoretical productivity | 1300 | t/h |
| Hopper capacity | 16 | t |
| Total weight | 30.5～40.5 | t |
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Diesel engine power | 242 | kW |
| Engine Manufacturer | Cummins | — |
| Engine Model | QSL8.9C325 | — |
| Emission | Stage Ⅲ | — |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Paver_RP1355HD_EN_20260105
File size: 1.4 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
Related models
XEMACH / XCMG
Request a quote ↗RP1355HD
Tell us the destination, application and preferred configuration. Our machinery team will confirm availability and export details.
