XCMG / GR5505T Pro
XCMG equipment / Product profile
Mining Grader

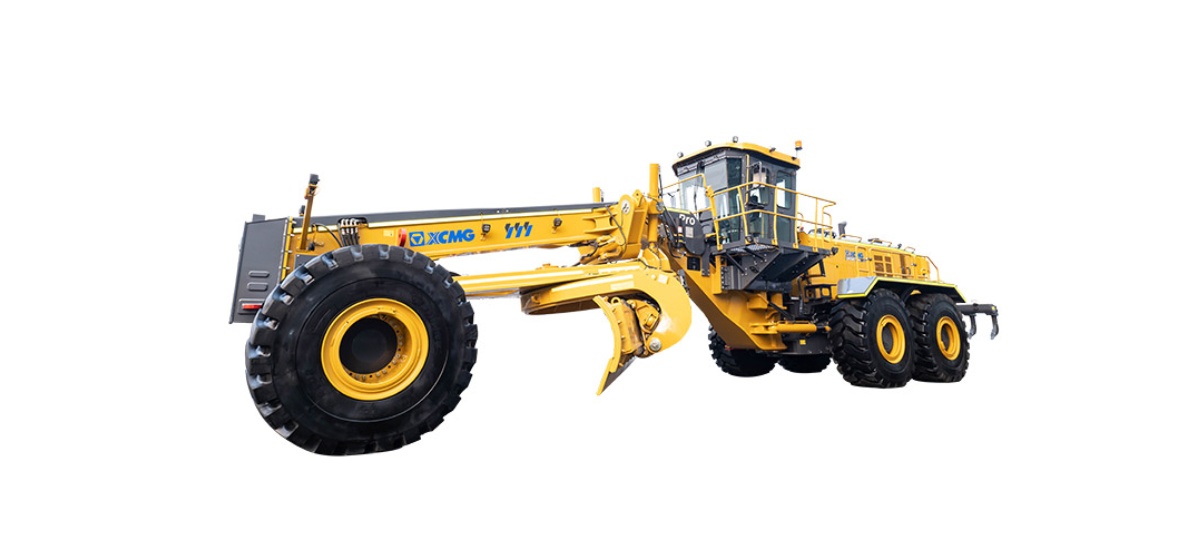

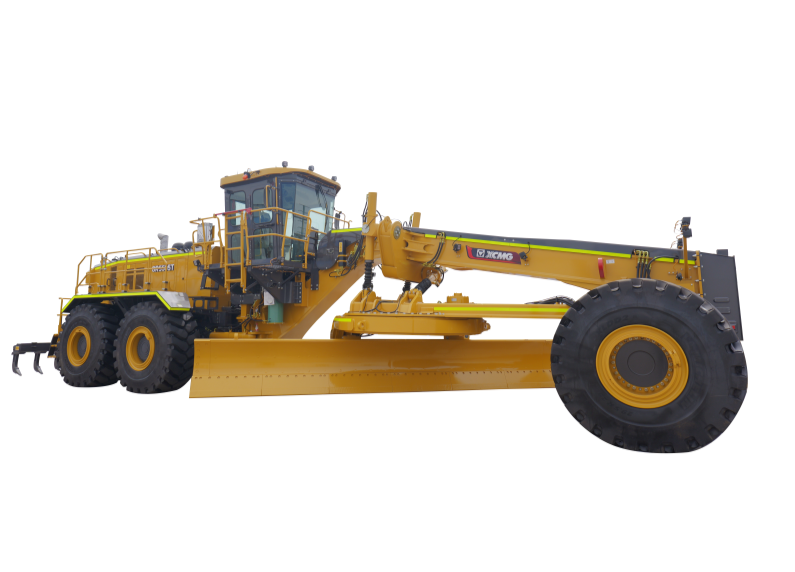

GR5505T Pro
XCMG GR5505T Pro — Mining Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power/speed447/2100 kW/rpm
Blade Length x Height7300x1025 mm
Traction force f=0.75≥390 kN
Engine model2806D-E18TA
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG GR5505T Pro — Mining Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power/speed: 447/2100 kW/rpm · Blade Length x Height: 7300x1025 mm · Traction force f=0.75: ≥390 kN · Engine model: 2806D-E18TA
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
Motor grader is one of the key earthmoving machinery used for finishing and leveling of ground surface and stable layer at highways, airports andother massive jobsites. In recent years,with its constantly expanded application and enhanced productivity, motor grader has been favored also inbulldozing and laydown of roadbed mixture in the open pit mines, as much in reconditioning of original landforms, etc.With robust structural partsand sufficient horse power, GR5505T, Proheavy-duty motor grader is specifically designed for large open pit mines.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine model | 2806D-E18TA | — |
| Rated power/speed | 447/2100 | kW/rpm |
| Emission | EU Stage Ⅲ | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Machine dimension | 16430x4560x4810 | mm |
| Blade Length x Height | 7300x1025 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Machine weight | 74000 | kg |
| Drive speed, forward | 4.6、5.9、8.7、11.7、17.7、25.1、32.2、42.7 | km/h |
| Drive speed, reverse | 4.5、8.7、17.2、32.6 | km/h |
| Traction force f=0.75 | ≥390 | kN |
| Maximum gradeability | ≥30 | % |
| Minimum turning radius | 12.5 | m |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
Specification sheet
Datasheet_Motor Grader_GR5505T PRO_Perkins_China Stage Ⅲ_EN_20250106
File size: 1.1 MiB
Related document — applicability not verified
Matched by model name or archive context, not a direct link from this product page. Confirm the model, year and configuration before use.
Related models
XEMACH / XCMG
Request a quote ↗GR5505T Pro
Tell us the destination, application and preferred configuration. Our machinery team will confirm availability and export details.
