XCMG / GR2605AT(Shangchai)
XCMG equipment / Product profile
5 Series Motor Grader

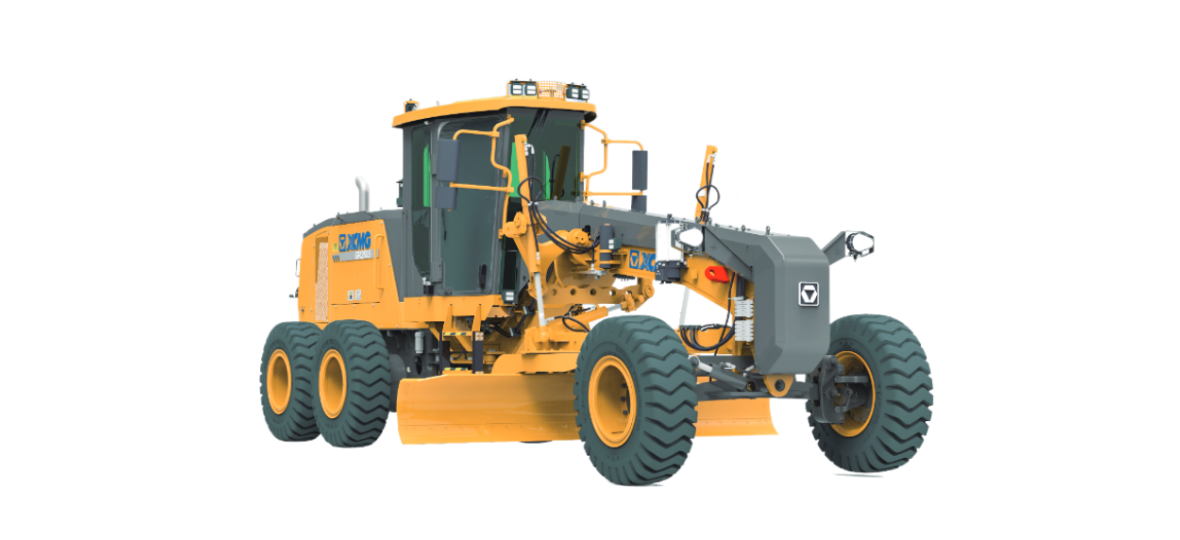

GR2605AT(Shangchai)
XCMG GR2605AT(Shangchai) — 5 Series Motor Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power/speed192/220 kW/rpm
Blade Length x Height3965×610 mm
Traction force f=0.75≥135 kN
Engine modelSC9DK260G3
Reference data from XCMG Global. Final market configuration must be confirmed.
XCMG Global ↗ · Source checked:
01
Overview
Published reference specifications
XCMG GR2605AT(Shangchai) — 5 Series Motor Grader. Review published parameters and request the configuration for your destination market from XEMACH.
Rated power/speed: 192/220 kW/rpm · Blade Length x Height: 3965×610 mm · Traction force f=0.75: ≥135 kN · Engine model: SC9DK260G3
Reference data from XCMG Global. Final market configuration must be confirmed.
Original manufacturer description (English)
As major machine for shaping and leveling operation in earthwork engineering, motor grader is widely used for large ground (such as road and airport) and leveling operation of stable layer. With the constant expansion of its functions and development of its high-efficiency over the years, motor grader is applied to bulldozing and spreading of open-pit and roadbed mixture as well trimming of original landform. Besides, it can be applied to snow removing in cold region. Featuring 260HP power, strong strength of machine components and sufficient driving force, GR2605AT is a heavy-duty motor grader research and developed especially for high-load working condition.
02
Technical specifications
Values and units are preserved as published. Missing speed or version information is not inferred.
Engine ＋
| Item | Value | Unit |
|---|---|---|
| Engine model | SC9DK260G3 | — |
| Rated power/speed | 192/220 | kW/rpm |
| Emission | EU Stage Ⅲ | — |
Dimensions ＋
| Item | Value | Unit |
|---|---|---|
| Machine dimension | 9680×2750×3500 | mm |
| Blade Length x Height | 3965×610 | mm |
Working Parameters ＋
| Item | Value | Unit |
|---|---|---|
| Machine weight | 19500 | kg |
| Drive speed, forward | 5、9、14、22、33、48 | km/h |
| Drive speed, reverse | 6、15、35 | km/h |
| Traction force f=0.75 | ≥135 | kN |
| Maximum gradeability | ≥25 | % |
| Minimum turning radius | 7.8 | m |
03
Dimensions & working range
04
Documents
The same original PDF is shared by all six language versions.
No model-specific document has been verified for publication. Ask us for the applicable brochure or maintenance manual.
