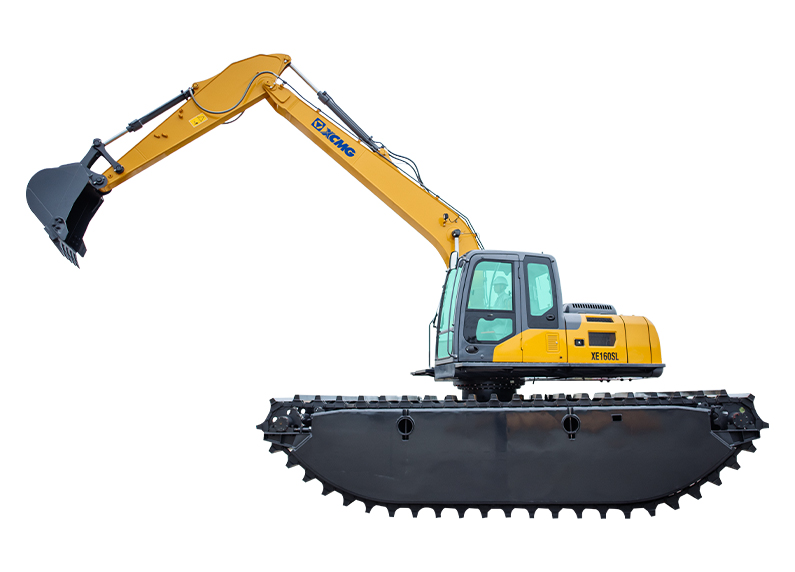

XCMG / XE160SLXCMG XE160SL — حفارة برمائيةحفارة برمائية
معدات XCMG / تفاصيل المنتج

حفارة برمائية

XE160SL

XCMG XE160SL — حفارة برمائية. راجع المواصفات المنشورة واطلب من XEMACH التجهيز المناسب لسوق الوجهة.

الوزن التشغيلي21150 Kg
سعة الجرافة0.6 m³
القدرة الاسمية86/2200 kW/rpm
قوة حفر الجرافة77 kN

بيانات مرجعية من XCMG Global. يجب تأكيد التجهيز النهائي لسوق الوجهة.
XCMG Global ↗ · تاريخ مراجعة المصدر:

01

نظرة عامة

المواصفات المرجعية المنشورة

XCMG XE160SL — حفارة برمائية. راجع المواصفات المنشورة واطلب من XEMACH التجهيز المناسب لسوق الوجهة.

الوزن التشغيلي: 21150 Kg · سعة الجرافة: 0.6 m³ · القدرة الاسمية: 86/2200 kW/rpm · قوة حفر الجرافة: 77 kN

بيانات مرجعية من XCMG Global. يجب تأكيد التجهيز النهائي لسوق الوجهة.

الوصف الأصلي للشركة المصنعة (بالإنجليزية)

XE160SL adopts a new engine which is jointly developed by XCMG and Cummins. It’s powerful, has the maximum power of the same tonnage, low speed with high torque, and greatly improved the fuel economy. Compared with the previous generation machine, it can reduce fuel consumption by 7%. A new gener-ation of internationally famous hydraulic components can withstand ultra-high rated working pressure, have the characteristics of high efficiency, precise control, small impact and long service life. Combined with the new generation of XEICS intelligent control system, which is independently developed by XCMG, the machine can make full use of the engine output power, and can save up to 7% of fuel under the same operating efficiency. The main structural parts are optimized by finite element analysis, and have passed long-period and high-intensity work assessments, and have a longer service life. All daily maintenance parts are within easy reach. It’s time saving, effort saving and much safer. The new injection-molded cab is equipped with double-layer laminated glass as standard, which can effectively block noise. Secondly, the cab adopts an integrated control panel and a new type of anti-glare flat screen, which is a simple and stylish. Equipped with a new type of silicone oil filled spring composite mount, the suspension seat can be adjusted in all directions, making the operation more comfortable.

02

المواصفات الفنية

تم الاحتفاظ بالقيم والوحدات المنشورة. لا يتم تخمين المعلومات المفقودة.

مواصفات العمل +
البندالقيمةالوحدة
الوزن التشغيلي21150Kg
سعة الجرافة0.6m³
سرعة السير3.4/2.1/1km/h
سرعة الدوران11r/min
قوة حفر الجرافة77kN
قوة حفر الذراع48.8kN
المحرك +
البندالقيمةالوحدة
القدرة الاسمية86/2200kW/rpm
طراز المحركCummins QSF3.8—
معيار الانبعاثاتالمعيار الوطني Stage III—
أقصى عزم دوران / سرعة الدوران470/1300N.m
سعة المحرك3.8L
04

الوثائق

تستخدم اللغات الست ملف PDF الأصلي نفسه.

لم يتم التحقق من وثيقة خاصة بهذا الطراز للنشر. اطلب الكتيب أو دليل الصيانة المناسب.

طلب وثائق فنية ↗
طلب دليل الصيانة ↗
